Volvo
New Holland
E200SR
Excavator
44 specifications
1 / 5

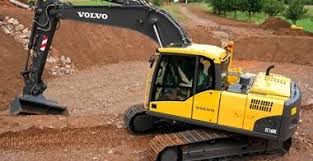

Image 1 of 5
Specifications
55 data points
Operating Specifications
| Operating Weight | 38,340 lb |
|---|---|
| Fuel Capacity | 66.1 gal |
| Hydraulic Pump Flow Capacity | 76.0 gal/min |
| Hydraulic System Fluid Capacity | 70.1 gal |
| Hydraulic System Relief Valve Pressure | 4,980 psi |
| Engine Oil Capacity | 6.7 gal |
| Cooling System Fluid Capacity | 6.4 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 0.7 gal |
| Alternator Supplied Amperage | 80 A |
Engine
| Engine Model | D6E EBE3 |
|---|---|
| Displacement | 348 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 131.0 hp |
| Net Power | 117.0 hp |
| Aspiration | Turbocharged with Intercooler |
| Torque Measured @ | 1,350 rpm |
| Max Torque | 461 lb-ft |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 115 in |
| Length of Track on Ground | 126 in |
| Tail Swing Radius | 97 in |
| Width to Outside of Tracks | 102 in |
| Removal Counterweight Clearance | 41 in |
Undercarriage
| Ground Pressure | 6 psi |
|---|---|
| Track Gauge | 79 in |
| Number of Track Rollers per Side | 7 |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 44 |
| Number of Carrier Rollers per Side | 2 |
| Drawbar Pull | 32,520 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 227 in |
|---|---|
| Max Reach Along Ground | 335 in |
| Max Loading Height | 241 in |
| Max Vertical Wall Digging Depth | 161 in |
| Max Cutting Height | 336 in |
| Shipping Length of Unit | 347 in |
| Shipping Height of Unit | 118 in |
Bucket
| Reference Bucket Capacity | 1.20 yd³ |
|---|
Swing Mechanism
| Swing Speed | 12 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 239 in |
|---|---|
| Max Vertical Wall Digging Depth | 179 in |
| Max Cutting Height | 347 in |
| Max Loading Height | 251 in |
| Max Reach Along Ground | 348 in |
| Shipping Length of Unit | 342 in |
| Shipping Height of Unit | 115 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 254 in |
|---|---|
| Max Cutting Height | 355 in |
| Max Loading Height | 376 in |
| Max Vertical Wall Digging Depth | 196 in |
| Max Reach Along Ground | 362 in |
| Shipping Length of Unit | 343 in |
| Shipping Height of Unit | 120 in |
