Komatsu

PC27MR-2

Mini Excavator

Operating Weight
6,590 lb
Max Digging Depth
104 in
Net Power
25.5 hp
All mini excavators

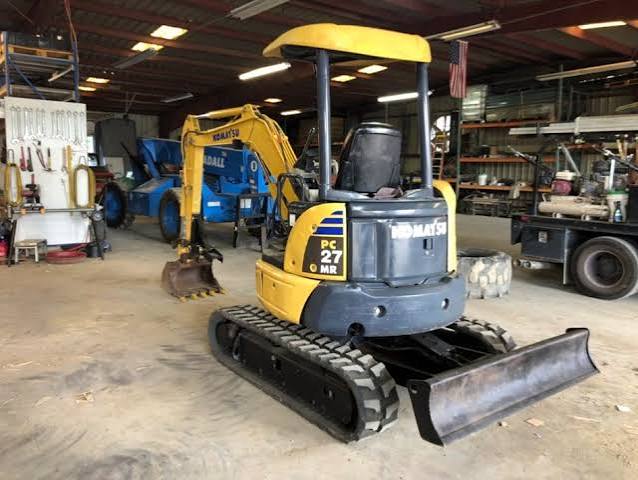

Komatsu PC27MR-2 Mini Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

33 data points

Operating Specifications

Operating Specifications specifications
Operating Weight6,590 lb
Fuel Capacity11.6 gal
Hydraulic Pump Flow Capacity20.0 gal/min
Hydraulic System Fluid Capacity7.9 gal
Hydraulic System Relief Valve Pressure3,555 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity1.5 gal

Engine

Engine specifications
Engine Model3D82AE
Displacement81 in³
Power Measured @2,600 rpm
Net Power25.5 hp

Dimensions

Dimensions specifications
Height - Top of Cab101 in
Length of Track on Ground59 in
Tail Swing Radius39 in
Width to Outside of Tracks61 in
Removal Counterweight Clearance22 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge49 in
Number of Track Rollers per Side4
Max Travel Speed2.9 mph
Shoe Size12 in
Number of Carrier Rollers per Side1
Drawbar Pull7,055 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth104 in
Max Reach Along Ground180 in
Max Vertical Wall Digging Depth86 in
Max Loading Height127 in
Shipping Length of Unit170 in
Max Cutting Height178 in
Shipping Height of Unit101 in

Bucket

Bucket specifications
Reference Bucket Capacity0.20 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
