Caterpillar
JCB
8010 CTS

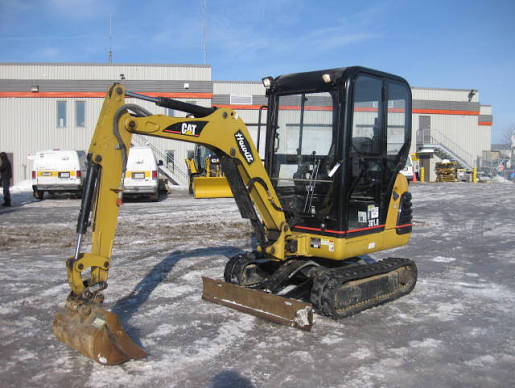

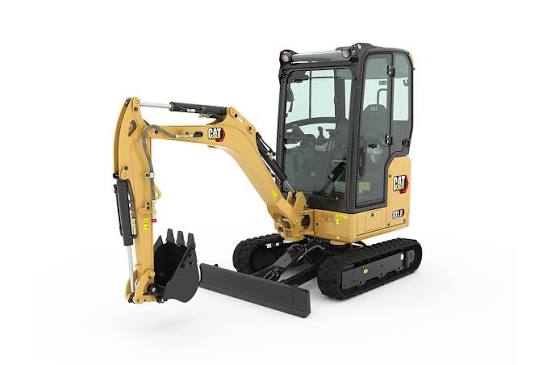

Mini Excavator
34 specifications
1 / 5
Image 1 of 5
Specifications
64 data points
Engine
| Engine Model | 3003 |
|---|---|
| Displacement | 58 in³ |
| Gross Power | 18.4 hp |
| Net Power | 17.4 hp |
| Bore | 3 in |
| Stroke | 3 in |
Weights
| Operating Weight - With Cab | 3,968 lb |
|---|
Hydraulic System
| Operating Pressure - Equipment | 2,734 psi |
|---|---|
| Operating Pressure - Swing | 2,528 psi |
| Operating Pressure - Travel | 2,734 psi |
| Digging Force - Bucket | 2,844 lb |
| Digging Force - Stick - Standard | 1,984 lb |
| Digging Force - Stick - Long | 1,609 lb |
| Auxiliary Circuit - Primary (245 bar/3,553 psi) | 8.4 gal/min |
| Pump - Gear (Tandem) | 4.2 gal/min |
| Pump - Gear (Single) | 4.5 gal/min |
Dimensions
| Track Gauge | 4 in |
|---|---|
| Shipping Length | 13 in |
| Track Shoe Width | 9 in |
| Height - Over Cab | 7 in |
| Maximum Digging Depth - Standard Stick | 8 in |
| Maximum Reach - Ground Level - Standard Stick | 12 in |
| Maximum Dump Height - Standard Stick | 8 in |
| Maximum Dump Height - Long Stick | 8 in |
| Swing Radius - Rear | 4 in |
| Maximum Cutting Height - Standard Stick | 12 in |
| Maximum Cutting Height - Long Stick | 12 in |
| Maximum Vertical Dig Depth - Long Stick | 6 in |
| Maximum Horizontal Reach - Long Stick | 13 in |
| Maximum Horizontal Reach - Standard Stick | 13 in |
| Width - Over Track | 4 in |
| Maximum Digging Depth - Long Stick | 8 in |
| Center Ground Clearance | 1 in |
| Height - Over Canopy | 7 in |
| Width - Upper Structure | 4 in |
| Maximum Reach - Ground Level - Long Stick | 13 in |
| Stick Length - Standard Stick | 4 in |
General Specifications
| Net Power | 21.00 hp (15.66 kw) Starting 2023 Model Year |
|---|---|
| Operating Weight lbs (kg) | 4,464 (2,024.8) Starting 2025 Model Year |
| Operating Weight | 4,473.00 lbs (2,028.92 kg) Starting 2023 Model Year |
| Max Digging Depth | 101.2 in ft (30.85 m) Starting 2023 Model Year |
| Digging Depth ft (m) | 8.4 (2.6) Starting 2025 Model Year |
| Engine hp (kW) | 19.2 (14.3) Starting 2025 Model Year |
| Digging Reach ft. (m) | 14.0 (4.3) Starting 2025 Model Year |
| Engine | C1.1 Starting 2021 Model Year |
Service Refill Capacities
| Engine Oil | 0.9 gal |
|---|---|
| Hydraulic Tank | 5.3 gal |
| Fuel Tank | 5.8 gal |
| Hydraulic System | 9.8 gal |
| Cooling System TAG | 1.2 gal |
Blades
| Blade Width | 540 in |
|---|---|
| Blade Height | 10 in |
| Blade Lift Height | 8 in |
| Dig Depth | 9 in |
Electrical System
| Electrical System Type | Twelve-volt system |
|---|
Swing System
| Machine Swing Speed | 10 rpm |
|---|---|
| Boom Swing - Left - Without Stop | 90 ° |
| Boom Swing - Left - With Stop | 54 ° |
| Boom Swing - Right | 50 ° |
| Swing System Type | Hydraulic Motor Driven |
Travel System
| Travel Speed - High | 2.7 mph |
|---|---|
| Travel Speed - Low | 1.4 mph |
| Maximum Traction Force - High Speed | 1,440 lb |
| Maximum Traction Force - Low Speed | 3,060 lb |
