Volvo

EC13XTV

Mini Excavator

Operating Weight
3,001 lb
Max Digging Depth
83 in
Gross Power
19.0 hp
Net Power
15.0 hp
All mini excavators

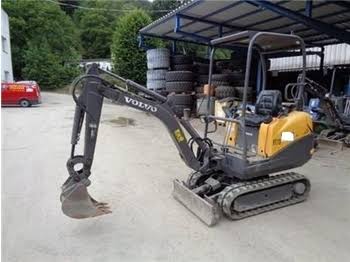

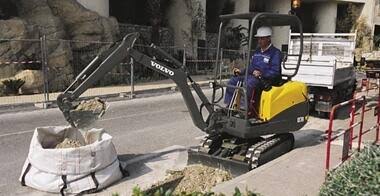

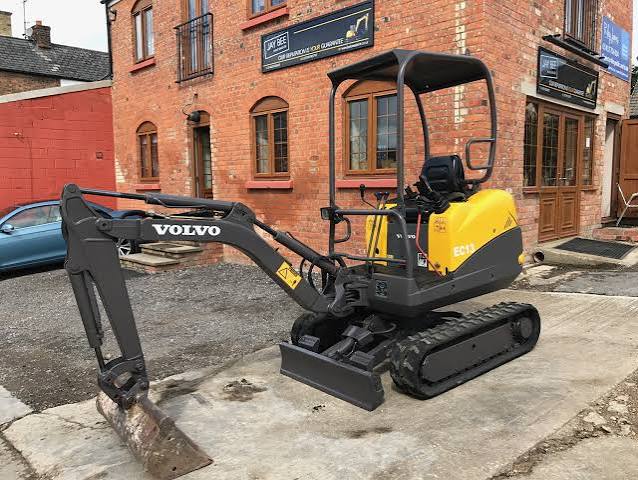

Volvo EC13XTV Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

44 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,001 lb
Fuel Capacity4.8 gal
Hydraulic Pump Flow Capacity8.2 gal/min
Hydraulic System Fluid Capacity4.7 gal
Hydraulic System Relief Valve Pressure2,466 psi
Operating Voltage12 V
Alternator Supplied Amperage40 A
Engine Oil Capacity1.0 gal
Cooling System Fluid Capacity1.4 gal

Engine

Engine specifications
Engine ModelL3E2
Displacement58 in³
Power Measured @2,800 rpm
Gross Power19.0 hp
Net Power15.0 hp
Aspirationnatural
Torque Measured @1,800 rpm
Max Torque37 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab91 in
Length of Track on Ground43 in
Tail Swing Radius41 in
Width to Outside of Tracks39 in
Removal Counterweight Clearance19 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge39 in
Max Travel Speed2.0 mph
Shoe Size8 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth83 in
Max Reach Along Ground142 in
Max Vertical Wall Digging Depth62 in
Max Loading Height93 in
Shipping Length of Unit131 in
Max Cutting Height131 in
Shipping Height of Unit91 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.10 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth89 in
Max Cutting Height135 in
Max Loading Height96 in
Max Vertical Wall Digging Depth67 in
Max Reach Along Ground148 in
Shipping Height of Unit91 in
Shipping Length of Unit131 in
