New Holland

E18

Mini Excavator

Operating Weight
3,792 lb
Max Digging Depth
139 in
Net Power
15.0 hp
All mini excavators

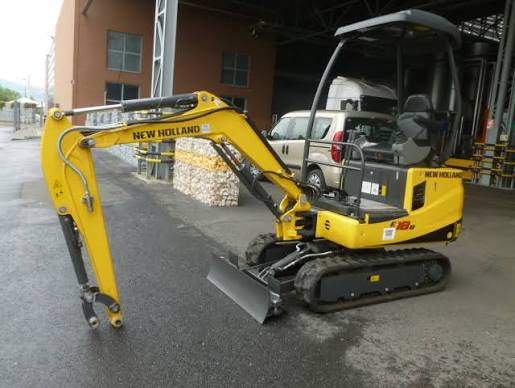

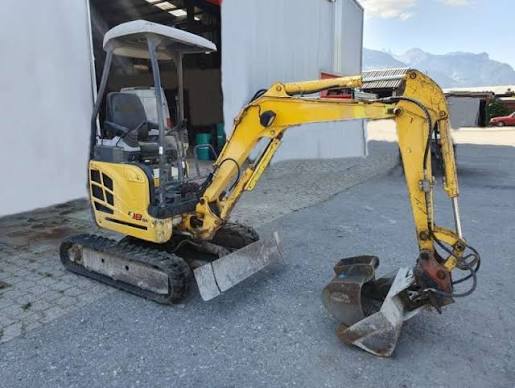

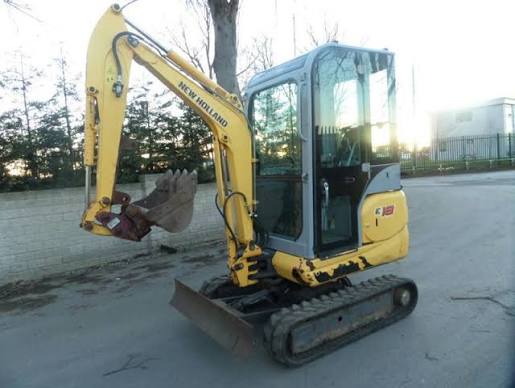

New Holland E18 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,792 lb
Fuel Capacity4.0 gal
Hydraulic Pump Flow Capacity8.0 gal/min
Hydraulic System Fluid Capacity4.5 gal
Hydraulic System Relief Valve Pressure2,988 psi
Operating Voltage12 V
Engine Oil Capacity1.0 gal
Cooling System Fluid Capacity0.7 gal

Engine

Engine specifications
Engine Model3TNE74-N
Displacement62 in³
Power Measured @2,000 rpm
Net Power15.0 hp
Number of Cylinders3
AspirationNatural

Dimensions

Dimensions specifications
Height - Top of Cab93 in
Length of Track on Ground48 in
Tail Swing Radius42 in
Width to Outside of Tracks40 in
Removal Counterweight Clearance18 in

Undercarriage

Undercarriage specifications
Ground Pressure4 psi
Track Gauge30 in
Max Travel Speed2.2 mph
Shoe Size9 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth139 in
Max Reach Along Ground145 in
Max Vertical Wall Digging Depth61 in
Max Loading Height98 in
Shipping Length of Unit141 in
Max Cutting Height139 in
Shipping Height of Unit94 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.10 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth139 in
Max Cutting Height144 in
Max Loading Height103 in
Max Vertical Wall Digging Depth73 in
Max Reach Along Ground154 in
Shipping Height of Unit94 in
Shipping Length of Unit141 in
