Komatsu

PC300HD-6

Excavator

Operating Weight
82,453 lb
Max Digging Depth
247 in
Max Digging Depth
260 in
Net Power
232.0 hp
All excavators

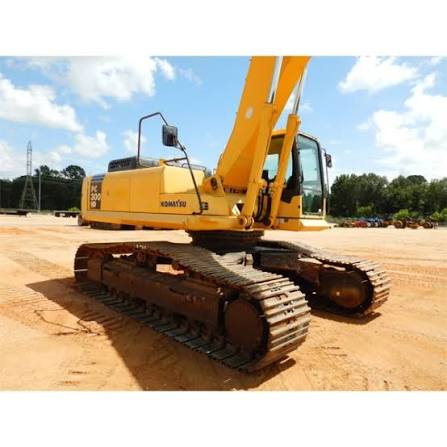

Komatsu PC300HD-6 Excavator
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

49 data points

Operating Specifications

Operating Specifications specifications
Operating Weight82,453 lb
Fuel Capacity142.7 gal
Hydraulic Pump Flow Capacity126.9 gal/min
Hydraulic System Fluid Capacity54.2 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelSA6D114E
Displacement505 in³
Power Measured @1,750 rpm
Net Power232.0 hp

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab133 in
Length of Track on Ground158 in
Tail Swing Radius131 in
Width to Outside of Tracks142 in
Removal Counterweight Clearance56 in

Undercarriage

Undercarriage specifications
Ground Pressure9 psi
Track Gauge114 in
Max Travel Speed2.8 mph
Shoe Size28 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth247 in
Max Reach Along Ground391 in
Max Loading Height265 in
Max Vertical Wall Digging Depth196 in
Max Cutting Height381 in
Shipping Length of Unit434 in
Shipping Height of Unit134 in

Bucket

Bucket specifications
Reference Bucket Capacity1.29 yd³
Maximum Bucket Capacity2.50 yd³
Minimum Bucket Capacity1.29 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth260 in
Max Vertical Wall Digging Depth226 in
Max Cutting Height397 in
Max Loading Height276 in
Max Reach Along Ground407 in
Shipping Length of Unit432 in
Shipping Height of Unit134 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth282 in
Max Cutting Height411 in
Max Loading Height291 in
Max Vertical Wall Digging Depth246 in
Max Reach Along Ground430 in
Shipping Length of Unit430 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth319 in
Max Cutting Height420 in
Max Reach Along Ground461 in
Max Loading Height300 in
Max Vertical Wall Dig Depth281 in
Shipping Length of Unit433 in
