Komatsu

PC30MRx

Mini Excavator

Operating Weight
7,540 lb
Max Digging Depth
113 in
Net Power
28.2 hp
All mini excavators

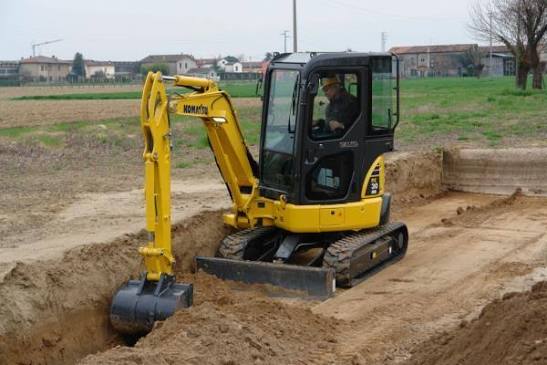

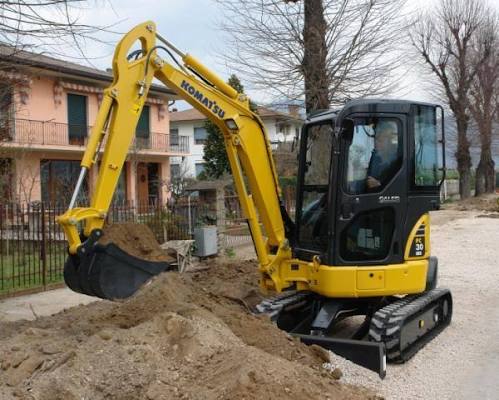

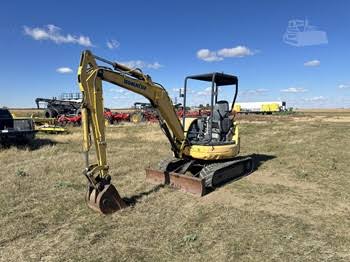

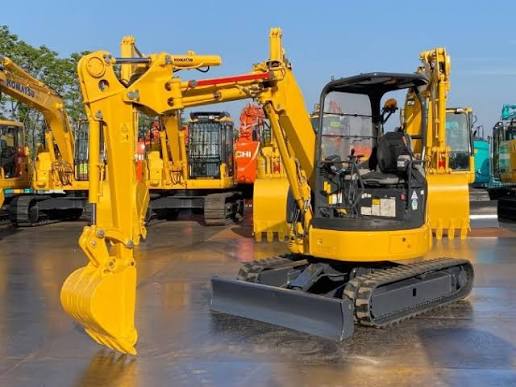

Komatsu PC30MRx Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight7,540 lb
Fuel Capacity11.1 gal
Hydraulic Pump Flow Capacity19.4 gal/min
Hydraulic System Fluid Capacity7.6 gal
Hydraulic System Relief Valve Pressure3,844 psi
Engine Oil Capacity2.1 gal
Cooling System Fluid Capacity1.5 gal

Engine

Engine specifications
Engine Model3D84E-3KJ
Displacement91 in³
Power Measured @2,500 rpm
Net Power28.2 hp
AspirationNatural

Dimensions

Dimensions specifications
Height - Top of Cab97 in
Length of Track on Ground81 in
Tail Swing Radius35 in
Width to Outside of Tracks61 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge50 in
Max Travel Speed2.9 mph
Shoe Size12 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth113 in
Max Reach Along Ground199 in
Max Vertical Wall Digging Depth101 in
Max Loading Height124 in
Shipping Length of Unit183 in
Max Cutting Height181 in
Shipping Height of Unit97 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth127 in
Max Cutting Height191 in
Max Loading Height133 in
Max Vertical Wall Digging Depth117 in
Max Reach Along Ground214 in
Shipping Height of Unit97 in
Shipping Length of Unit183 in
