JCB

8020 CTS

Mini Excavator

Operating Weight
4,557 lb
Gross Power
19.7 hp
Net Power
19.0 hp
All mini excavators

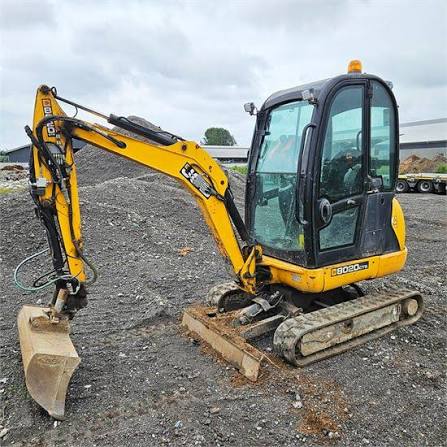

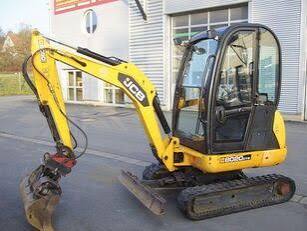

JCB 8020 CTS Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Operating Weight4,557 lb

Engine

Engine specifications
Engine Model403D-11
Displacement69 in³
Gross Power19.7 hp
Net Power19.0 hp
Max Torque47 lb-ft
Alternator40 A
Cooling systemWater cooled
FuelDiesel
Starter motor1.5 hp

Hydraulic System

Hydraulic System specifications
Auxiliary hydraulic flow6.9 gal/min
Pump Type1 Variable (2 Ports) or 1 Gear
Excavator/track main relief3,336 psi
Nominal output14.7 gal/min
Slew main relief2,321 psi
Hydraulic motor (Travel)Piston

Dimensions

Dimensions specifications
Ground Clearance6 in
Height - Top of Cab94 in
Width Over Tracks40 in
Transport Length142 in
Track Gauge44 in
Undercarriage Overall Length69 in
Cab width38 in
Overall width of superstructure40 in
Cab length309.4 gal

Undercarriage

Undercarriage specifications
Number of bottom rollers per side4
Track tensionGrease

Fluid Capacities

Fluid Capacities specifications
Fuel Tank6.3 gal
Hydraulic system7.4 gal
Engine Oil1.1 gal
Hydraulic Tank6.7 gal
Engine coolant1.4 gal

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max.Dumping Height110 in
Max Digging Height146 in
Max Digging Reach170 in
Maximum digging depth - dozer up100 in
Maximum vertical wallcut depth86 in
Maximum digging depth - dozer down103 in
Maximum height to dipper nose pivot pin126 in
Minimum front swing radius (no offset)69 in

Blades

Blades specifications
Blade Width40 in
Blade Height7 in
Approach angle25 °
Dig depth (below ground)8 in
Maximum height13 in
Reach in front of tracks16 in

Performance

Performance specifications
Gradeability35.0 %
