Komatsu

PC35MR-2

Mini Excavator

Operating Weight
8,245 lb
Max Digging Depth
126 in
Net Power
29.1 hp
All mini excavators

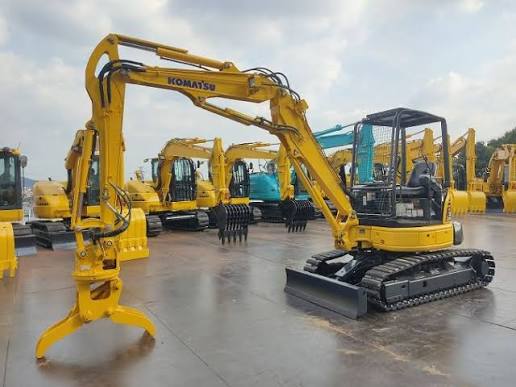

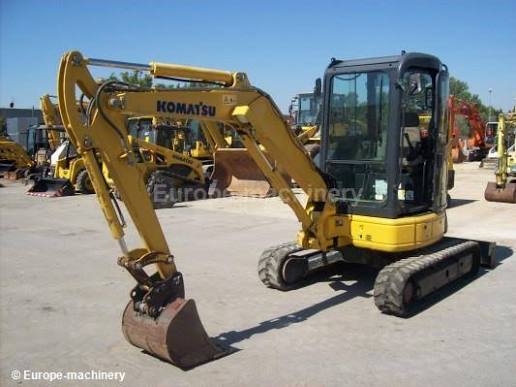

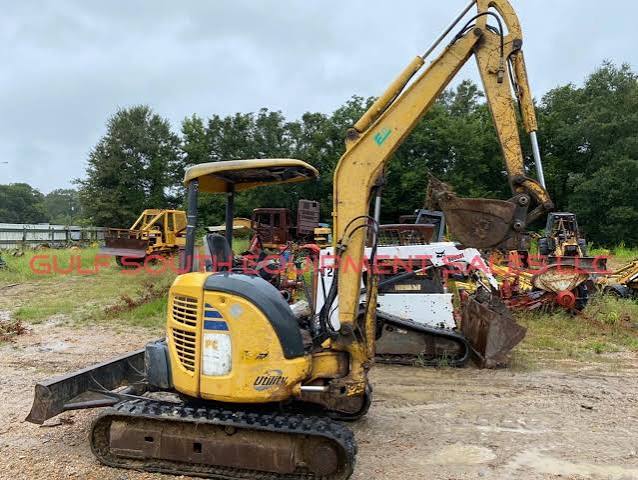

Komatsu PC35MR-2 Mini Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

26 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,245 lb
Fuel Capacity11.6 gal
Hydraulic System Fluid Capacity8.7 gal
Operating Voltage12 V
Engine Oil Capacity2.0 gal
Cooling System Fluid Capacity0.9 gal

Engine

Engine specifications
Engine Model3D88E-5
Displacement100 in³
Power Measured @2 rpm
Net Power29.1 hp

Dimensions

Dimensions specifications
Ground Clearance84 in
Height - Top of Cab101 in
Length of Track on Ground192 in
Tail Swing Radius37 in
Width to Outside of Tracks70 in
Removal Counterweight Clearance192 in

Undercarriage

Undercarriage specifications
Number of Track Rollers per Side4
Max Travel Speed2.9 mph
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth126 in
Max Reach Along Ground206 in
Max Vertical Wall Digging Depth108 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
Maximum Bucket Capacity0.20 yd³
Minimum Bucket Capacity0.10 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
