Airman

AX22U-4

Mini Excavator

Operating Weight
5,269 lb
Max Digging Depth
93 in
Net Power
19.6 hp
All mini excavators

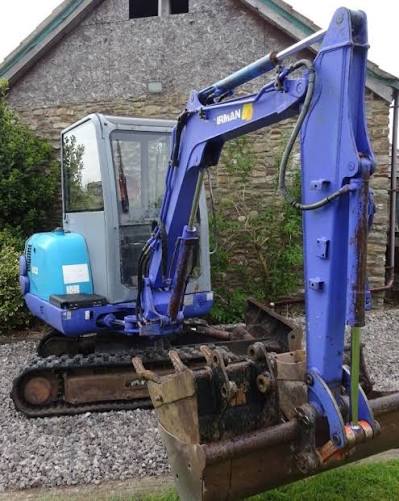

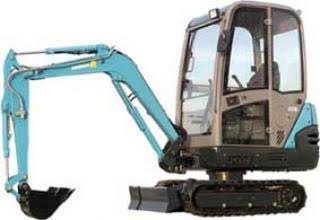

Airman AX22U-4 Mini Excavator
1 / 5
Image 1 of 5
Image: truck1.com.ng

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight5,269 lb
Hydraulic Pump Flow Capacity12.5 gal/min
Hydraulic System Relief Valve Pressure3,046 psi

Engine

Engine specifications
Engine Model3TNV76
Displacement68 in³
Power Measured @2,400 rpm
Net Power19.6 hp
Number of Cylinders3

Dimensions

Dimensions specifications
Ground Clearance12 in
Length of Track on Ground76 in
Tail Swing Radius32 in
Width to Outside of Tracks57 in

Undercarriage

Undercarriage specifications
Max Travel Speed1.7 mph
Shoe Size10 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth93 in
Max Reach Along Ground165 in
Max Vertical Wall Digging Depth77 in
Max Loading Height114 in
Shipping Length of Unit155 in
Shipping Height of Unit96 in

Bucket

Bucket specifications
Reference Bucket Capacity0.10 yd³
