Komatsu

PC400HD-6

Excavator

Max Digging Depth
265 in
Max Digging Depth
301 in
All excavators

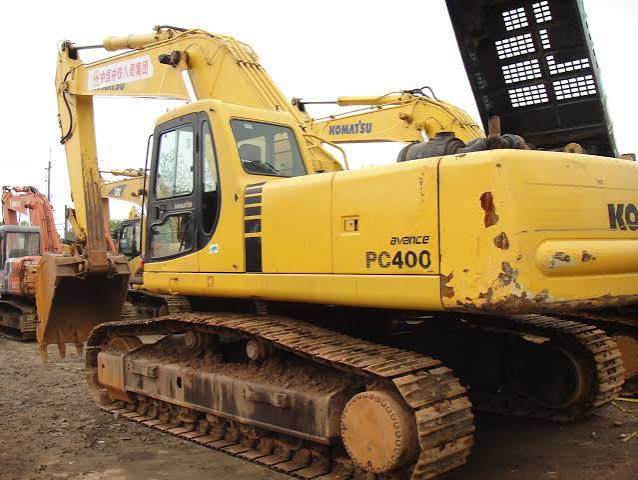

Komatsu PC400HD-6 Excavator
1 / 5
Image 1 of 5
Image: products.unitedtractors.com

Specifications

53 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity159.9 gal
Hydraulic Pump Flow Capacity162.8 gal/min
Hydraulic System Fluid Capacity71.4 gal
Hydraulic System Relief Valve Pressure5,050 psi

Engine

Engine specifications
Engine ModelM11
Displacement659 in³
Power Measured @1,950 rpm

Dimensions

Dimensions specifications
Ground Clearance29 in
Height - Top of Cab134 in
Length of Track on Ground172 in
Tail Swing Radius138 in
Width to Outside of Tracks142 in
Removal Counterweight Clearance57 in
Digging Depth360 in
Digging Reach360 in

Undercarriage

Undercarriage specifications
Ground Pressure10 psi
Track Gauge114 in
Max Travel Speed3.5 mph
Shoe Size28 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth265 in
Max Reach Along Ground426 in
Max Loading Height283 in
Max Vertical Wall Digging Depth207 in
Max Cutting Height410 in
Shipping Length of Unit469 in
Shipping Height of Unit146 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth301 in
Max Vertical Wall Digging Depth265 in
Max Cutting Height435 in
Max Loading Height304 in
Max Reach Along Ground465 in
Shipping Length of Unit469 in
Shipping Height of Unit150 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth301 in
Max Cutting Height435 in
Max Loading Height304 in
Max Vertical Wall Digging Depth265 in
Max Reach Along Ground465 in
Shipping Length of Unit466 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth328 in
Max Cutting Height441 in
Max Reach Along Ground486 in
Max Loading Height309 in
Max Vertical Wall Dig Depth282 in
Shipping Length of Unit467 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth360 in
Max Reach Along Ground519 in
Max Cutting Height458 in
Max Loading Height326 in
Max Vertical Wall Dig Depth319 in
Shipping Height of Unit170 in
Shipping Length of Unit463 in
