936E
Excavator
Specifications pending
1 / 5

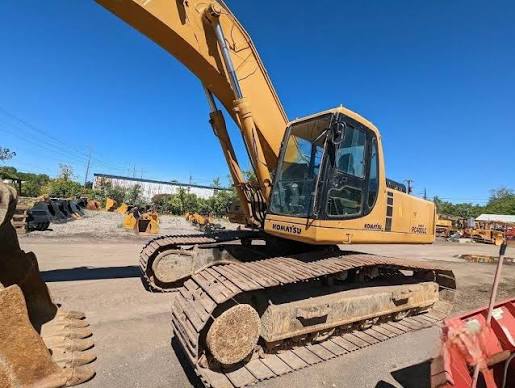

Image 1 of 5
Specifications
56 data points
Operating Specifications
| Fuel Capacity | 159.9 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 172.3 gal/min |
| Hydraulic System Fluid Capacity | 71.4 gal |
| Hydraulic System Relief Valve Pressure | 5,050 psi |
Engine
| Engine Model | SA6D125E |
|---|---|
| Displacement | 674 in³ |
| Power Measured @ | 2,050 rpm |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Height - Top of Cab | 130 in |
| Length of Track on Ground | 172 in |
| Tail Swing Radius | 138 in |
| Width to Outside of Tracks | 135 in |
| Removal Counterweight Clearance | 53 in |
| Digging Depth | 360 in |
| Digging Reach | 360 in |
Undercarriage
| Ground Pressure | 9 psi |
|---|---|
| Track Gauge | 108 in |
| Max Travel Speed | 3.5 mph |
| Shoe Size | 28 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 268 in |
|---|---|
| Max Reach Along Ground | 427 in |
| Max Loading Height | 278 in |
| Max Vertical Wall Digging Depth | 211 in |
| Max Cutting Height | 406 in |
| Shipping Length of Unit | 469 in |
| Shipping Height of Unit | 146 in |
Bucket
| Reference Bucket Capacity | 2.39 yd³ |
|---|---|
| Maximum Bucket Capacity | 2.90 yd³ |
| Minimum Bucket Capacity | 1.80 yd³ |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 288 in |
|---|---|
| Max Vertical Wall Digging Depth | 224 in |
| Max Cutting Height | 407 in |
| Max Loading Height | 280 in |
| Max Reach Along Ground | 443 in |
| Shipping Length of Unit | 468 in |
| Shipping Height of Unit | 148 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 306 in |
|---|---|
| Max Cutting Height | 431 in |
| Max Loading Height | 299 in |
| Max Vertical Wall Digging Depth | 270 in |
| Max Reach Along Ground | 466 in |
| Shipping Length of Unit | 467 in |
Boom/Stick Excavator Option 4
| Max Digging Depth | 331 in |
|---|---|
| Max Cutting Height | 435 in |
| Max Reach Along Ground | 487 in |
| Max Loading Height | 305 in |
| Max Vertical Wall Dig Depth | 287 in |
| Shipping Length of Unit | 467 in |
Boom/Stick Excavator Option 5
| Max Digging Depth | 362 in |
|---|---|
| Max Reach Along Ground | 519 in |
| Max Cutting Height | 454 in |
| Max Loading Height | 322 in |
| Max Vertical Wall Dig Depth | 324 in |
| Shipping Height of Unit | 173 in |
| Shipping Length of Unit | 461 in |
