Komatsu

PC490-10

Excavator

Operating Weight
102,802 lb
Max Digging Depth
268 in
Max Digging Depth
287 in
Net Power
359.4 hp
All excavators

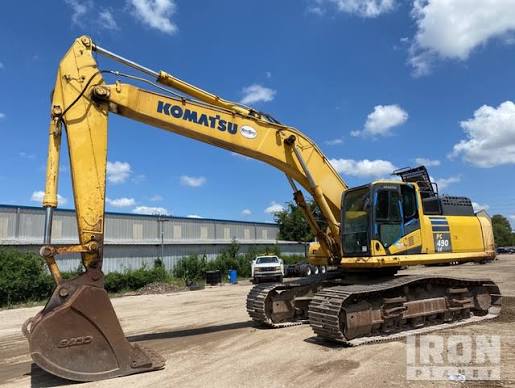

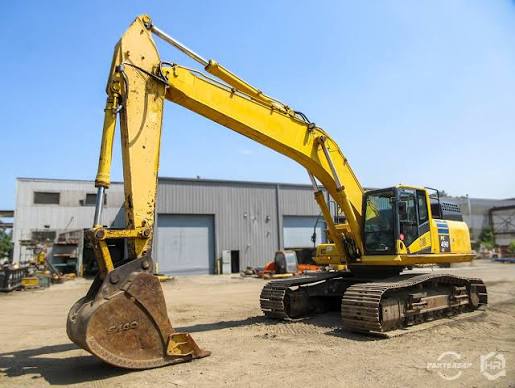

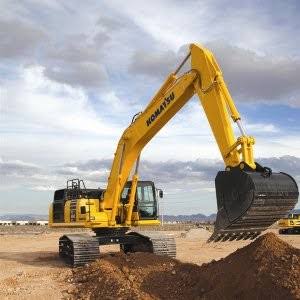

Komatsu PC490-10 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

57 data points

Operating Specifications

Operating Specifications specifications
Operating Weight102,802 lb
Fuel Capacity171.8 gal
Hydraulic Pump Flow Capacity182.3 gal/min
Engine Oil Capacity9.8 gal
Operating Voltage24 V
Swing Drive Fluid Capacity5.3 gal

Engine

Engine specifications
Engine ModelSAA6D125E-6-A
Displacement674 in³
Power Measured @1,900 rpm
Gross Power362.1 hp
Net Power359.4 hp
AspirationTurbocharged
Engine MakeKomatsu

Dimensions

Dimensions specifications
Ground Clearance28 in
Height - Top of Cab133 in
Length of Track on Ground199 in
Tail Swing Radius144 in
Width to Outside of Tracks138 in
Removal Counterweight Clearance55 in

Undercarriage

Undercarriage specifications
Track Gauge114 in
Number of Track Rollers per Side7
Max Travel Speed3.5 mph
Shoe Size24 in
Number of Shoes per Side46
Number of Carrier Rollers per Side2
Drawbar Pull75 lb

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth268 in
Max Reach Along Ground427 in
Max Loading Height282 in
Max Vertical Wall Digging Depth206 in
Max Cutting Height409 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth287 in
Max Vertical Wall Digging Depth222 in
Max Cutting Height408 in
Max Loading Height282 in
Max Reach Along Ground442 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth306 in
Max Cutting Height433 in
Max Loading Height301 in
Max Vertical Wall Digging Depth269 in
Max Reach Along Ground466 in

Boom/Stick Excavator Option 4

Boom/Stick Excavator Option 4 specifications
Max Digging Depth330 in
Max Cutting Height437 in
Max Reach Along Ground487 in
Max Loading Height307 in
Max Vertical Wall Dig Depth284 in

Boom/Stick Excavator Option 5

Boom/Stick Excavator Option 5 specifications
Max Digging Depth362 in
Max Reach Along Ground520 in
Max Cutting Height455 in
Max Loading Height324 in
Max Vertical Wall Dig Depth319 in

Boom/Stick Excavator Option 6

Boom/Stick Excavator Option 6 specifications
Max Digging Depth251 in
Max Reach Along Ground408 in
Max Cutting Height414 in
Max Loading Height280 in
Max Vertical Wall Dig Depth173 in
