Komatsu

PC60-1

Mini Excavator

Operating Weight
13,669 lb
Max Digging Depth
150 in
Net Power
50.0 hp
All mini excavators

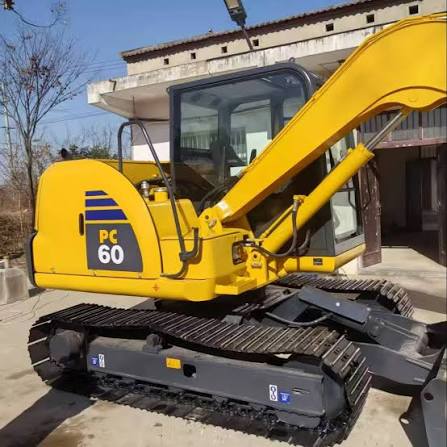

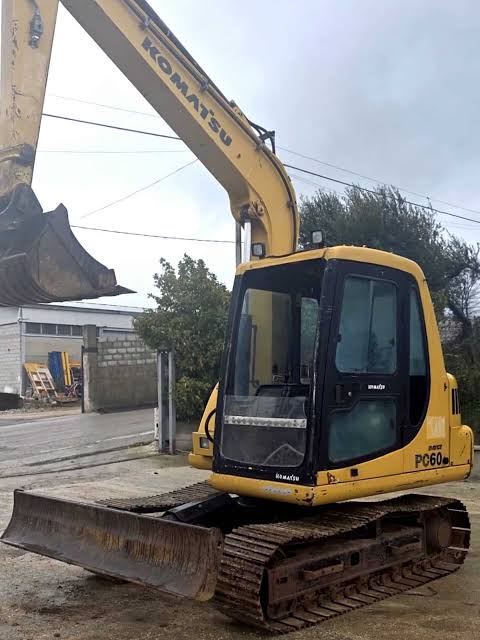

Komatsu PC60-1 Mini Excavator
1 / 5
Image 1 of 5
Image: m.made-in-china.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight13,669 lb
Fuel Capacity29.1 gal
Hydraulic Pump Flow Capacity34.9 gal/min
Hydraulic System Fluid Capacity31.8 gal
Hydraulic System Relief Valve Pressure2,490 psi

Engine

Engine specifications
Engine Model4D94
Displacement179 in³
Net Power50.0 hp

Dimensions

Dimensions specifications
Ground Clearance13 in
Height - Top of Cab96 in
Tail Swing Radius67 in
Width to Outside of Tracks83 in
Removal Counterweight Clearance31 in

Undercarriage

Undercarriage specifications
Ground Pressure5 psi
Track Gauge64 in
Max Travel Speed1.9 mph
Shoe Size19 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth150 in
Max Reach Along Ground238 in
Max Vertical Wall Digging Depth119 in
Max Loading Height134 in
Shipping Length of Unit228 in
Max Cutting Height206 in
Shipping Height of Unit97 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth170 in
Max Cutting Height212 in
Max Loading Height141 in
Max Vertical Wall Digging Depth137 in
Max Reach Along Ground256 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth170 in
Max Cutting Height214 in
Max Loading Height142 in
Max Reach Along Ground257 in
Max Vertical Wall Digging Depth138 in
