Komatsu
Liugong
936E
Excavator
Specifications pending
1 / 5

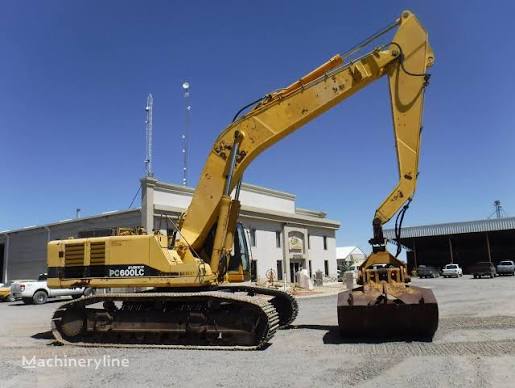

Image 1 of 5
Specifications
54 data points
Operating Specifications
| Fuel Capacity | 232.5 gal |
|---|---|
| Hydraulic Pump Flow Capacity | 216.7 gal/min |
| Hydraulic System Fluid Capacity | 97.8 gal |
| Engine Oil Capacity | 11.1 gal |
| Cooling System Fluid Capacity | 15.1 gal |
| Operating Voltage | 24 V |
| Swing Drive Fluid Capacity | 3.5 gal |
| Alternator Supplied Amperage | 70 A |
Engine
| Engine Model | SA6D140E-3 |
|---|---|
| Displacement | 930 in³ |
| Power Measured @ | 1,800 rpm |
| Net Power | 385.0 hp |
| Aspiration | Turbocharged with aftercooler |
Dimensions
| Ground Clearance | 31 in |
|---|---|
| Height - Top of Cab | 131 in |
| Length of Track on Ground | 181 in |
| Tail Swing Radius | 145 in |
| Width to Outside of Tracks | 154 in |
| Removal Counterweight Clearance | 54 in |
| Digging Depth | 396 in |
| Digging Reach | 396 in |
Undercarriage
| Ground Pressure | 14 psi |
|---|---|
| Track Gauge | 113 in |
| Number of Track Rollers per Side | 9 |
| Max Travel Speed | 3.4 mph |
| Shoe Size | 24 in |
| Number of Shoes per Side | 52 |
| Number of Carrier Rollers per Side | 3 |
| Drawbar Pull | 93,256 lb |
Boom/Stick Excavator Option 1
| Max Digging Depth | 335 in |
|---|---|
| Max Reach Along Ground | 504 in |
| Max Loading Height | 315 in |
| Max Vertical Wall Digging Depth | 296 in |
| Max Cutting Height | 468 in |
| Shipping Length of Unit | 505 in |
| Shipping Height of Unit | 170 in |
Bucket
| Reference Bucket Capacity | 3.60 yd³ |
|---|---|
| Maximum Bucket Capacity | 4.60 yd³ |
| Minimum Bucket Capacity | 3.20 yd³ |
Swing Mechanism
| Swing Speed | 8 rpm |
|---|
Boom/Stick Excavator Option 2
| Max Digging Depth | 276 in |
|---|---|
| Max Vertical Wall Digging Depth | 219 in |
| Max Cutting Height | 435 in |
| Max Loading Height | 284 in |
| Max Reach Along Ground | 444 in |
| Shipping Length of Unit | 449 in |
| Shipping Height of Unit | 178 in |
Boom/Stick Excavator Option 3
| Max Digging Depth | 335 in |
|---|---|
| Max Cutting Height | 466 in |
| Max Loading Height | 315 in |
| Max Vertical Wall Digging Depth | 296 in |
| Max Reach Along Ground | 504 in |
| Shipping Length of Unit | 505 in |
| Shipping Height of Unit | 170 in |
