Komatsu

PC60L-1

Mini Excavator

Operating Weight
14,771 lb
Max Digging Depth
149 in
Net Power
50.0 hp
All mini excavators

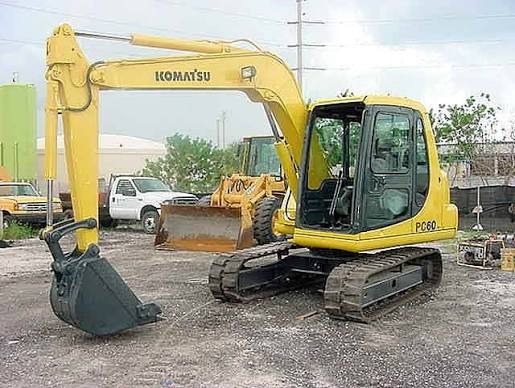

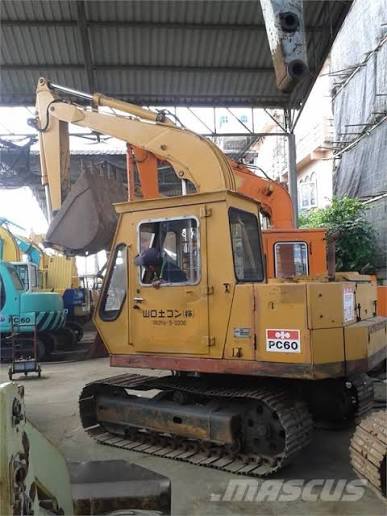

Komatsu PC60L-1 Mini Excavator
1 / 5
Image 1 of 5
Image: amazon.com

Specifications

35 data points

Operating Specifications

Operating Specifications specifications
Operating Weight14,771 lb
Fuel Capacity29.1 gal
Hydraulic Pump Flow Capacity34.9 gal/min
Hydraulic System Fluid Capacity31.8 gal
Hydraulic System Relief Valve Pressure2,490 psi

Engine

Engine specifications
Engine Model4D94
Displacement201 in³
Net Power50.0 hp

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab98 in
Tail Swing Radius67 in
Width to Outside of Tracks91 in
Removal Counterweight Clearance33 in

Undercarriage

Undercarriage specifications
Ground Pressure3 psi
Track Gauge67 in
Max Travel Speed1.3 mph
Shoe Size24 in

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth149 in
Max Reach Along Ground236 in
Max Vertical Wall Digging Depth117 in
Max Loading Height137 in
Shipping Length of Unit228 in
Max Cutting Height209 in
Shipping Height of Unit98 in

Swing Mechanism

Swing Mechanism specifications
Swing Speed14 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth168 in
Max Cutting Height215 in
Max Loading Height143 in
Max Vertical Wall Digging Depth135 in
Max Reach Along Ground256 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth168 in
Max Cutting Height216 in
Max Loading Height144 in
Max Reach Along Ground256 in
Max Vertical Wall Digging Depth135 in

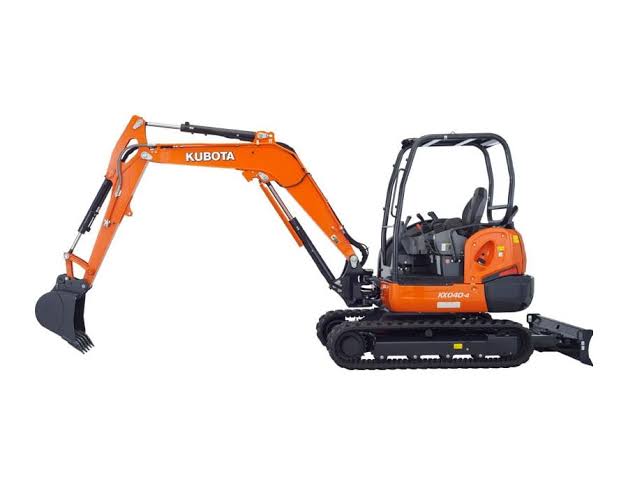

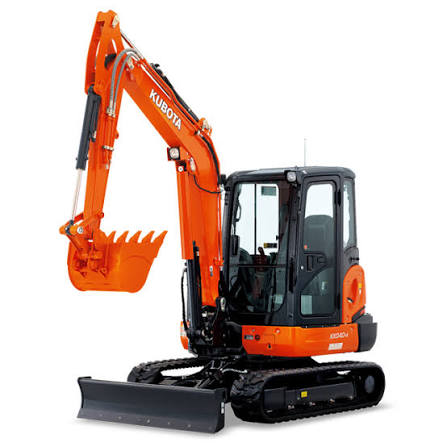

Comparable machines
