Komatsu

PC95R-2

Excavator

Max Digging Depth
148 in
Max Digging Depth
157 in
Net Power
82.5 hp
All excavators

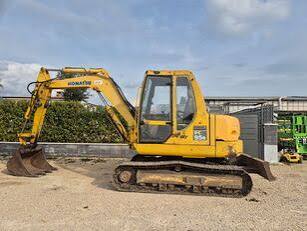

Komatsu PC95R-2 Excavator
1 / 5
Image 1 of 5
Image: lectura-specs.com

Specifications

43 data points

Operating Specifications

Operating Specifications specifications
Hydraulic Pump Flow Capacity47.6 gal/min
Operating Voltage12 V
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine Model4D106-1FB
Displacement269 in³
Power Measured @2,200 rpm
Net Power82.5 hp
Number of Cylinders4
Torque Measured @1,500 rpm
Max Torque229 lb-ft

Dimensions

Dimensions specifications
Height - Top of Cab107 in
Tail Swing Radius60 in
Width to Outside of Tracks88 in
Removal Counterweight Clearance31 in
Digging Depth168 in
Digging Reach168 in

Undercarriage

Undercarriage specifications
Track Gauge71 in
Number of Track Rollers per Side6
Max Travel Speed3.2 mph
Shoe Size18 in
Number of Shoes per Side44
Number of Carrier Rollers per Side1

Boom/Stick Excavator Option 1

Boom/Stick Excavator Option 1 specifications
Max Digging Depth148 in
Max Reach Along Ground260 in
Max Loading Height163 in
Max Cutting Height240 in
Shipping Length of Unit243 in
Shipping Height of Unit107 in

Bucket

Bucket specifications
Maximum Bucket Capacity0.60 yd³
Minimum Bucket Capacity0.30 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed10 rpm

Boom/Stick Excavator Option 2

Boom/Stick Excavator Option 2 specifications
Max Digging Depth157 in
Max Cutting Height246 in
Max Loading Height169 in
Max Reach Along Ground270 in
Shipping Length of Unit243 in
Shipping Height of Unit107 in

Boom/Stick Excavator Option 3

Boom/Stick Excavator Option 3 specifications
Max Digging Depth175 in
Max Cutting Height257 in
Max Loading Height180 in
Max Reach Along Ground287 in
Shipping Length of Unit243 in
Shipping Height of Unit107 in
