Komatsu
Case
440
Skid Steer Loader
32 specifications
1 / 5

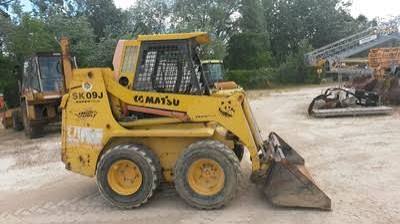

Image 1 of 5
Specifications
29 data points
Operating Specifications
| Operating Weight | 7,496 lb |
|---|---|
| Max Speed | 8.1 mph |
| Fuel Capacity | 21.2 gal |
| Hydraulic System Fluid Capacity | 13.3 gal |
| Tire Size | 12 x 16.5 |
| Operating Voltage | 12 V |
| Alternator Supplied Amperage | 60 A |
| Engine Oil Fluid Capacity | 2.4 gal |
| Operating Speed | 5.0 mph |
Engine
| Engine Model | 4D98E-1FD |
|---|---|
| Displacement | 203 in³ |
| Power Measured @ | 2,300 rpm |
| Number of Cylinders | 4 |
Hydraulic System
| Pump Flow Capacity | 19.3 gal/min |
|---|---|
| Relief Valve Pressure | 2,466 psi |
| Pump Type | loader gear pump |
Dimensions
| Ground Clearance | 10 in |
|---|---|
| Height - Top of Cab | 84 in |
| Wheelbase | 40 in |
| Width Over Tires | 69 in |
| Reach at Max Lift and Dump | 26 in |
| Length with Bucket | 133 in |
| Clearance at Max Lift and Dump | 95 in |
| Turning Radius from Center - inc bucket | 81 in |
| Turning Radius from Center - machine rear | 63 in |
Loader
| Bucket Capacity | 0.10 yd³ |
|---|---|
| Operating Load Rating | 1,918 lb |
| Tipping Angle | 3,836 ° |
| Breakout Force | 5,401 psi |
