Komatsu

WA30-5

Wheel Loader

Bucket Capacity - heaped
0.60 yd³
Gross Power
29.0 hp
All wheel loaders

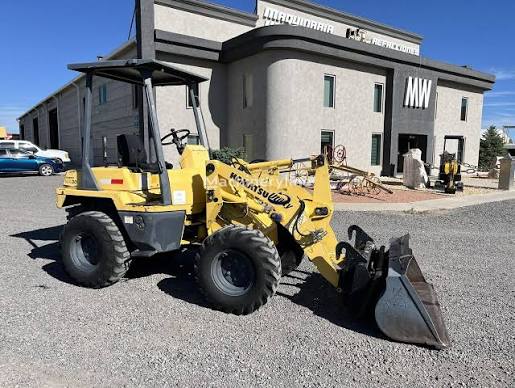

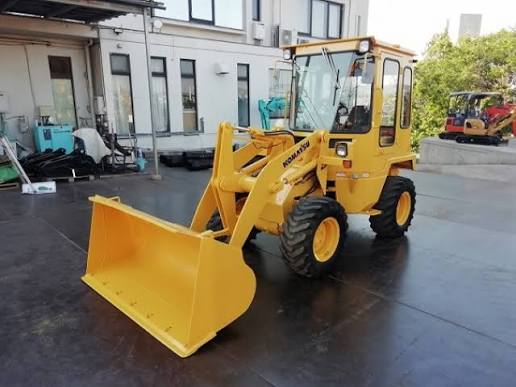

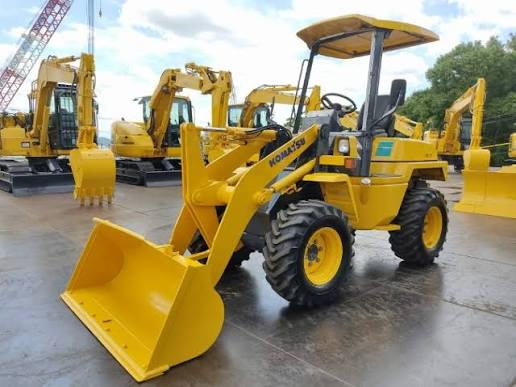

Komatsu WA30-5 Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

31 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity11.9 gal
Hydraulic System Fluid Capacity7.4 gal
Static Tipping Weight4,285 lb
Turning Radius126 in
Front Axle/Diff Fluid Capacity1.4 gal
Rear Axle/Diff Fluid Capacity1.4 gal
Cooling System Fluid Capacity1.3 gal

Engine

Engine specifications
Engine Model3D84E-3B
Displacement91 in³
Power Measured @2,500 rpm
Gross Power29.0 hp
Number of Cylinders3
AspirationNatural

Hydraulic System

Hydraulic System specifications
Raise Time4.6 s
Lower Time2.8 s
Dump Time1.0 s
Relief Valve Setting2,990 psi

Dimensions

Dimensions specifications
Ground Clearance11 in
Height - Top of Cab97 in
Wheelbase70 in
Width Over Tires60 in
Reach at Max Lift and Dump31 in
Length with Bucket on Ground159 in
Hinge Pin - Max Height107 in

Transmission

Transmission specifications
Max Speed - Forward9.3 mph
Max Speed - Reverse9.3 mph
Transmission TypeHydrostatic

Bucket

Bucket specifications
Bucket Capacity - heaped0.60 yd³
Dump Clearance at Max Raise84 in
Breakout Force5,950 lb
Bucket Width62 in
