Komatsu
Tata Hitachi
TWL3036

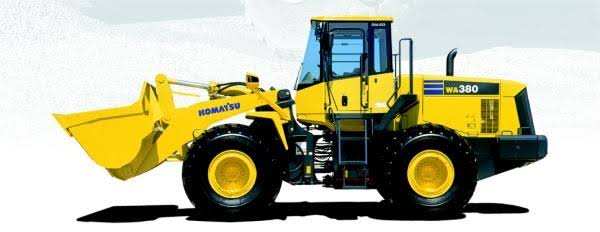

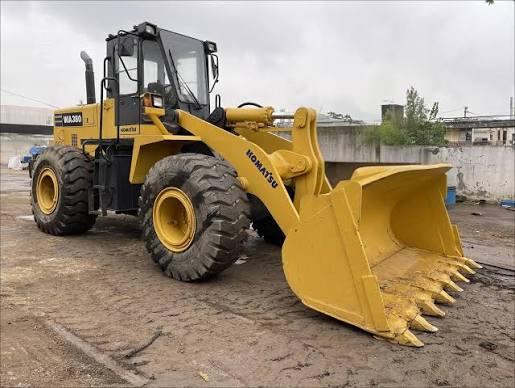

Wheel Loader
41 specifications
1 / 5
Image 1 of 5
Specifications
42 data points
Operating Specifications
| Operating Weight | 38,956 lb |
|---|---|
| Fuel Capacity | 75.9 gal |
| Tire Size | 23.5 R 25 XHA L3 |
| Hydraulic System Fluid Capacity | 50.2 gal |
| Static Tipping Weight | 31,140 lb |
| Operating Voltage | 24 V |
| Turning Radius | 230 in |
| Engine Oil Fluid Capacity | 6.0 gal |
| Rear Axle Oscillation | 30 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 9.8 gal |
| Rear Axle/Diff Fluid Capacity | 9.8 gal |
| Cooling System Fluid Capacity | 14.1 gal |
| Transmission Fluid Capacity | 12.7 gal |
Engine
| Engine Model | S6D114 E-1 |
|---|---|
| Displacement | 507 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 192.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 79.3 gal/min |
|---|---|
| Raise Time | 5.1 s |
| Lower Time | 3.0 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,046 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 133 in |
| Wheelbase | 126 in |
| Width Over Tires | 109 in |
| Reach at Max Lift and Dump | 44 in |
| Length with Bucket on Ground | 309 in |
| Hinge Pin - Max Height | 161 in |
Transmission
| Max Speed - Forward | 23.0 mph |
|---|---|
| Max Speed - Reverse | 23.7 mph |
| Transmission Type | fully automatic powershift |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 4.09 yd³ |
|---|---|
| Dump Clearance at Max Raise | 119 in |
| Breakout Force | 34,845 lb |
| Bucket Width | 115 in |
