Komatsu

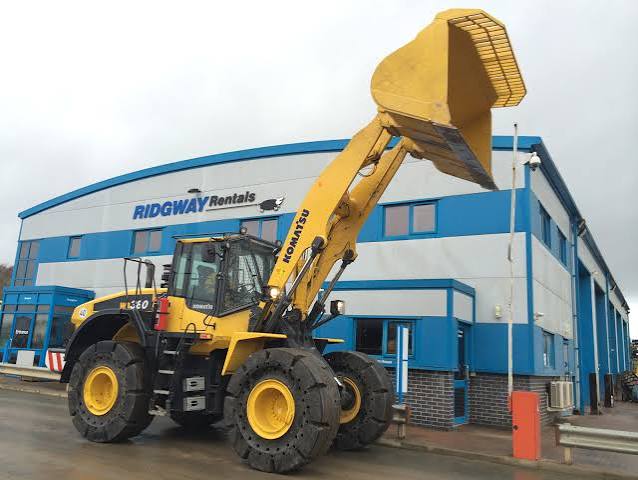

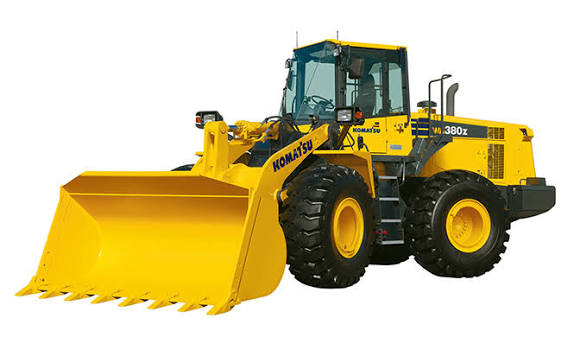

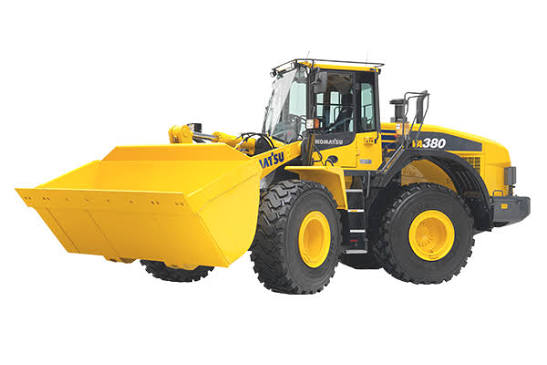

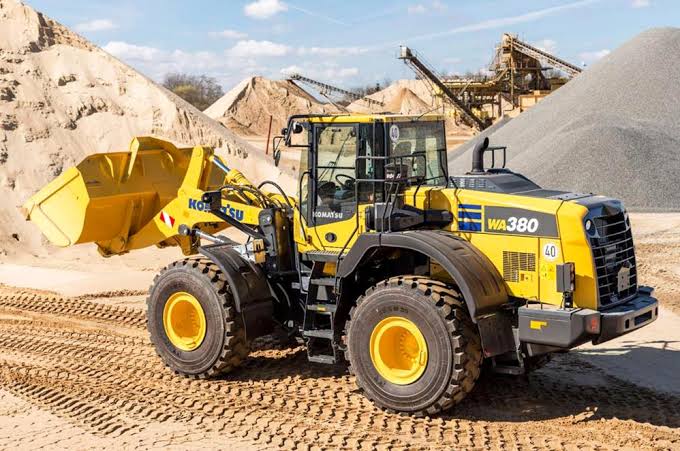

WA380-6 Waste Handler
- Operating Weight
- 45,062 lb
- Bucket Capacity - heaped
- 7.10 yd³
- Net Power
- 191.0 hp
1 / 5
Image 1 of 5
Specifications
22 data points
Operating Specifications
| Operating Weight | 45,062 lb |
|---|---|
| Tire Size | 23.5-25 L3 |
| Static Tipping Weight | 33,896 lb |
| Operating Voltage | 24 V |
| Turning Radius | 265 in |
| Alternator Supplied Amperage | 60 A |
Engine
| Engine Model | SAA6D107E |
|---|---|
| Power Measured @ | 2,100 rpm |
| Net Power | 191.0 hp |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 131 in |
| Width Over Tires | 109 in |
| Reach at Max Lift and Dump | 55 in |
| Length with Bucket on Ground | 328 in |
| Hinge Pin - Max Height | 163 in |
Transmission
| Transmission Type | Auto shift |
|---|---|
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 7.10 yd³ |
|---|---|
| Dump Clearance at Max Raise | 108 in |
| Bucket Width | 134 in |
