Komatsu
WA380-8
- Operating Weight
- 40,686 lb
- Bucket Capacity - heaped
- 4.39 yd³
- Gross Power
- 192.0 hp
- Net Power
- 191.0 hp
1 / 5

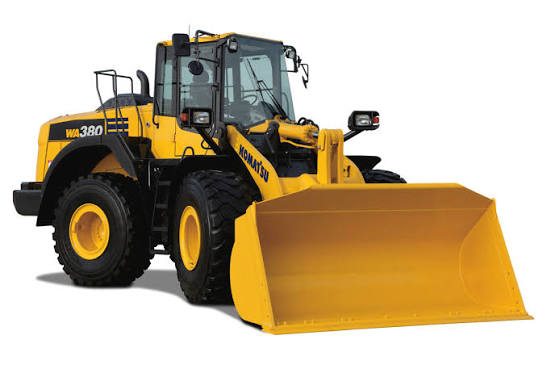

Image 1 of 5
Specifications
57 data points
Operating Specifications
| Operating Weight | 40,686 lb |
|---|---|
| Fuel Capacity | 79.3 gal |
| Hydraulic System Fluid Capacity | 37.6 gal |
| Static Tipping Weight | 34,039 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 6.1 gal |
| Alternator Supplied Amperage | 90 A |
| Front Axle/Diff Fluid Capacity | 10.6 gal |
| Rear Axle/Diff Fluid Capacity | 10.6 gal |
| Cooling System Fluid Capacity | 16.1 gal |
| Transmission Fluid Capacity | 14.3 gal |
| Rated Bucket Capacity | 3.51 – 4.30 yd³ |
Engine
| Engine Model | SAA6D107E-3 |
|---|---|
| Displacement | 408 in³ |
| Gross Power | 192.0 hp |
| Net Power | 191.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 2,100 rpm |
| Bore | 4 in |
| Stroke | 5 in |
| Air cleaner | Dry type with double elements |
| Emissions Certification | EPA Tier 4 |
Weights
| Operating Weight | 40,532 – 40,929 lb |
|---|
Hydraulic System
| Pump Flow Capacity | 36.2 gal/min |
|---|---|
| Raise Time | 5.9 s |
| Lower Time | 3.3 s |
| Dump Time | 1.8 s |
| Pump Type | Piston pump |
| Relief Valve Pressure | 4,550 psi |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Height - Top of Cab | 134 in |
| Wheelbase | 131 in |
| Width Over Tires | 110 in |
| Reach at Max Lift and Dump | 46 in |
| Length with Bucket on Ground | 328 in |
| Hinge Pin - Max Height | 162 in |
Transmission
| Max Speed - Forward | 23.3 mph |
|---|---|
| Max Speed - Reverse | 24.0 mph |
| Transmission Type | Automatic |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 4.39 yd³ |
|---|---|
| Bucket Capacity - struck | 3.81 yd³ |
| Dump Clearance at Max Raise | 115 in |
| Breakout Force | 35,494 lb |
| Bucket Width | 115 in |
General Specifications
| Operating Weight | 40,532 - 41,932 (18385 - 19020) Starting 2021 Model Year |
|---|---|
| Operating Weight lbs (kg) | 40,532 - 41,932 (18,385 - 19,020) Starting 2025 Model Year |
| Bucket Capacity | 3.5 - 4.3 (2.7 - 3.3) Starting 2019 Model Year |
| Bucket Capacity cu. yd. (cu m) | 3.5 - 4.3 (2.7 - 3.3) Starting 2025 Model Year |
| Engine type | SAA6D107E-3 Starting 2019 Model Year |
| Engine Power | 191 (143) Starting 2019 Model Year |
| Max Dump Height | 9.7 (2.9) Starting 2019 Model Year |
| Max Dump Height ft.( m) | 9.8 (2.9) Starting 2026 Model Year |
| OperatingWeight lbs. (kg) | 40,532 - 41,932 (18,385 - 19,020) Starting 2026 Model Year |
| Engine Power Net hp (kW) | 191 (143) Starting 2025 Model Year |
