Komatsu
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

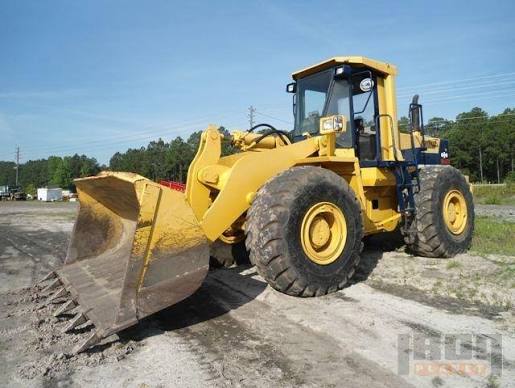

Image 1 of 5
Specifications
38 data points
Operating Specifications
| Operating Weight | 44,357 lb |
|---|---|
| Fuel Capacity | 89.9 gal |
| Tire Size | 26.5 R 25 |
| Hydraulic System Fluid Capacity | 55.5 gal |
| Static Tipping Weight | 34,392 lb |
| Operating Voltage | 24 V |
| Turning Radius | 239 in |
| Engine Oil Fluid Capacity | 6.0 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 15.9 gal |
| Rear Axle/Diff Fluid Capacity | 15.9 gal |
| Cooling System Fluid Capacity | 13.3 gal |
| Transmission Fluid Capacity | 15.9 gal |
Engine
| Engine Model | SAA 6D114 E-1 |
|---|---|
| Displacement | 504 in³ |
| Power Measured @ | 2,200 rpm |
| Gross Power | 220.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharged |
| Torque Measured @ | 1,300 rpm |
Hydraulic System
| Pump Flow Capacity | 86.7 gal/min |
|---|---|
| Raise Time | 6.7 s |
| Lower Time | 3.6 s |
| Dump Time | 1.5 s |
| Relief Valve Setting | 3,046 psi |
Dimensions
| Ground Clearance | 19 in |
|---|---|
| Height - Top of Cab | 137 in |
| Wheelbase | 131 in |
| Width Over Tires | 114 in |
| Reach at Max Lift and Dump | 41 in |
| Length with Bucket on Ground | 317 in |
| Hinge Pin - Max Height | 166 in |
Transmission
| Transmission Type | fully automatic 4-speed full powershift with 'kickdown' and 'gear-hold' |
|---|
Bucket
| Bucket Capacity - heaped | 4.80 yd³ |
|---|---|
| Dump Clearance at Max Raise | 120 in |
| Breakout Force | 41,073 lb |
| Bucket Width | 119 in |
