Komatsu

WA470-3M Active+

Wheel Loader

Operating Weight
51,522 lb
Bucket Capacity - heaped
5.49 yd³
Gross Power
263.0 hp
All wheel loaders

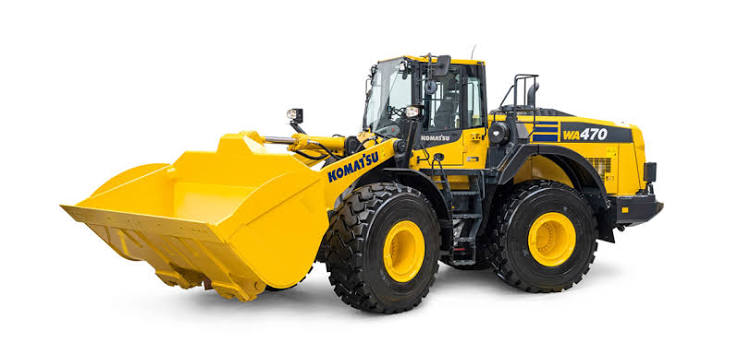

Komatsu WA470-3M Active+ Wheel Loader
1 / 5
Image 1 of 5
Image: xiangyao888.en.made-in-china.com

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight51,522 lb
Fuel Capacity103.1 gal
Tire Size26.5 R25 XHA L3 Michelin
Hydraulic System Fluid Capacity63.5 gal
Static Tipping Weight40,367 lb
Operating Voltage24 V
Turning Radius244 in
Engine Oil Fluid Capacity8.8 gal
Rear Axle Oscillation30 °
Alternator Supplied Amperage50 A
Front Axle/Diff Fluid Capacity17.2 gal
Rear Axle/Diff Fluid Capacity17.2 gal
Cooling System Fluid Capacity18.0 gal
Transmission Fluid Capacity13.8 gal

Engine

Engine specifications
Engine ModelSA6D125E
Displacement674 in³
Gross Power263.0 hp
Number of Cylinders6
Torque Measured @1,400 rpm

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity104.9 gal/min
Raise Time6.8 s
Lower Time3.7 s
Dump Time1.4 s
Relief Valve Setting3,046 psi

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab138 in
Wheelbase134 in
Width Over Tires114 in
Reach at Max Lift and Dump50 in
Length with Bucket on Ground339 in
Hinge Pin - Max Height167 in

Transmission

Transmission specifications
Max Speed - Forward24.3 mph
Max Speed - Reverse23.4 mph
Transmission Typefully automatic 4-speed full powershift with 'kickodwn' and 'gear-hold'
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped5.49 yd³
Dump Clearance at Max Raise119 in
Breakout Force40,915 lb
Bucket Width119 in
