Komatsu
Tata Hitachi
TWL3036
Wheel Loader
41 specifications
1 / 5

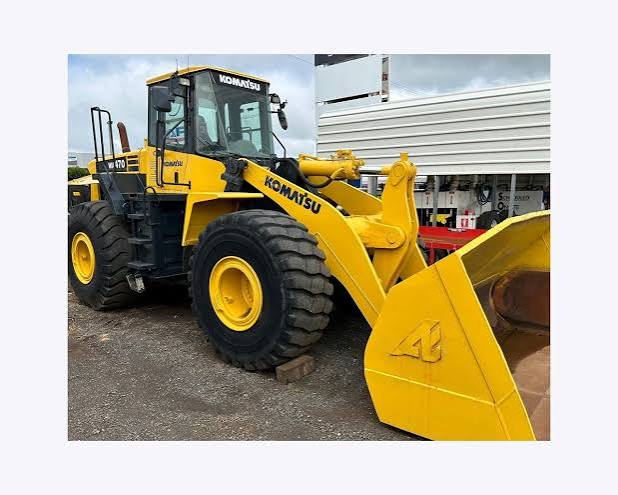

Image 1 of 5
Specifications
43 data points
Operating Specifications
| Operating Weight | 50,221 lb |
|---|---|
| Fuel Capacity | 103.1 gal |
| Tire Size | 26.5 R25 |
| Hydraulic System Fluid Capacity | 49.2 gal |
| Static Tipping Weight | 41,678 lb |
| Operating Voltage | 24 V |
| Turning Radius | 245 in |
| Engine Oil Fluid Capacity | 10.1 gal |
| Rear Axle Oscillation | 30 ° |
| Alternator Supplied Amperage | 50 A |
| Front Axle/Diff Fluid Capacity | 13.8 gal |
| Rear Axle/Diff Fluid Capacity | 13.8 gal |
| Cooling System Fluid Capacity | 13.3 gal |
| Transmission Fluid Capacity | 49.2 gal |
Engine
| Engine Model | SAA6D125E-3 |
|---|---|
| Displacement | 674 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 271.0 hp |
| Number of Cylinders | 6 |
| Aspiration | Turbocharger |
| Torque Measured @ | 1,400 rpm |
Hydraulic System
| Pump Flow Capacity | 108.4 gal/min |
|---|---|
| Raise Time | 6.0 s |
| Lower Time | 3.7 s |
| Dump Time | 1.4 s |
| Relief Valve Setting | 3,046 psi |
| Pump Type | gear pump |
Dimensions
| Ground Clearance | 22 in |
|---|---|
| Height - Top of Cab | 137 in |
| Wheelbase | 137 in |
| Width Over Tires | 115 in |
| Reach at Max Lift and Dump | 52 in |
| Length with Bucket on Ground | 350 in |
| Hinge Pin - Max Height | 172 in |
Transmission
| Max Speed - Forward | 24.7 mph |
|---|---|
| Max Speed - Reverse | 25.5 mph |
| Transmission Type | automatic powershift transmission |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
Bucket
| Bucket Capacity - heaped | 5.40 yd³ |
|---|---|
| Dump Clearance at Max Raise | 122 in |
| Breakout Force | 41,365 lb |
| Bucket Width | 119 in |
