Komatsu

WA470-6

Wheel Loader

Operating Weight
50,618 lb
Bucket Capacity - heaped
5.49 yd³
Gross Power
273.0 hp
Net Power
272.0 hp
All wheel loaders

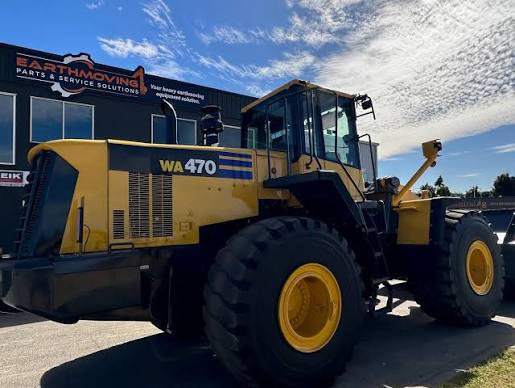

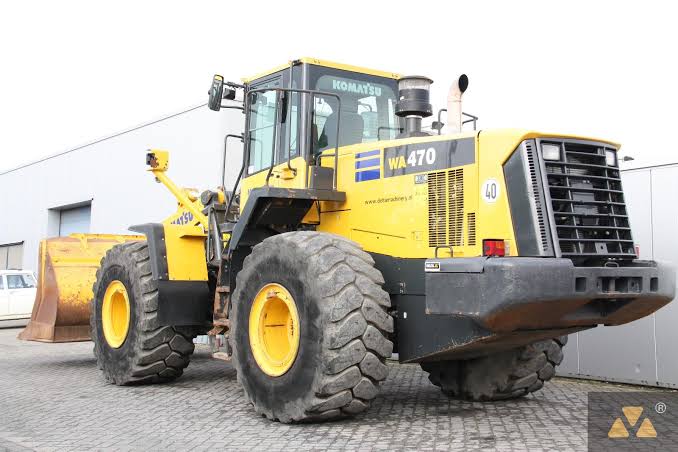

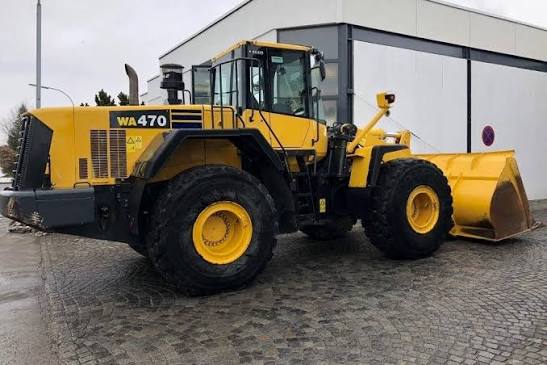

Komatsu WA470-6 Wheel Loader
1 / 5
Image 1 of 5
Image: mdx.vn

Specifications

40 data points

Operating Specifications

Operating Specifications specifications
Operating Weight50,618 lb
Fuel Capacity109.2 gal
Tire Size26.5-25
Hydraulic System Fluid Capacity45.8 gal
Engine Oil Fluid Capacity10.1 gal
Front Axle/Diff Fluid Capacity15.9 gal
Rear Axle/Diff Fluid Capacity14.8 gal
Cooling System Fluid Capacity16.2 gal
Transmission Fluid Capacity17.2 gal

Engine

Engine specifications
Engine ModelSAA6D125E-5
Displacement674 in³
Power Measured @2,000 rpm
Gross Power273.0 hp
Net Power272.0 hp
Number of Cylinders6
Engine MakeKomatsu
Bore5 in
Stroke6 in

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity51.6 gal/min
Raise Time5.4 s
Lower Time3.7 s
Dump Time1.6 s
Relief Valve Setting3,555 psi
Pump TypePiston pump

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab138 in
Wheelbase137 in
Width Over Tires119 in
Reach at Max Lift and Dump49 in
Length with Bucket on Ground348 in
Hinge Pin - Max Height173 in

Transmission

Transmission specifications
Max Speed - Forward22.5 mph
Max Speed - Reverse23.2 mph
Transmission TypeFull-powershift
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped5.49 yd³
Bucket Capacity - struck4.60 yd³
Breakout Force43,160 lb
Bucket Width126 in
