Komatsu

WA480-6

Wheel Loader

Operating Weight
54,510 lb
Bucket Capacity - heaped
6.00 yd³
Gross Power
300.0 hp
Net Power
299.0 hp
All wheel loaders

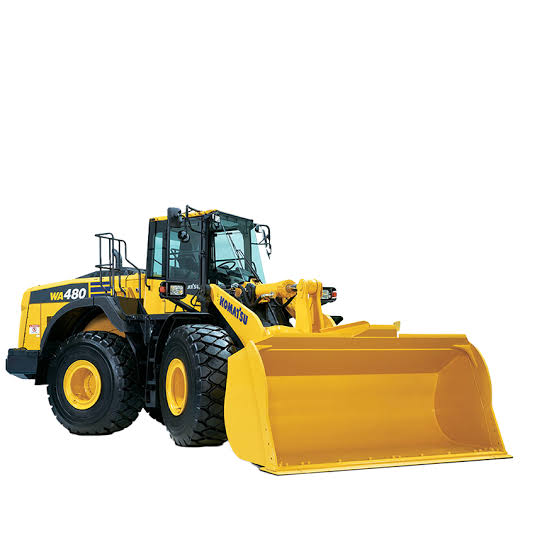

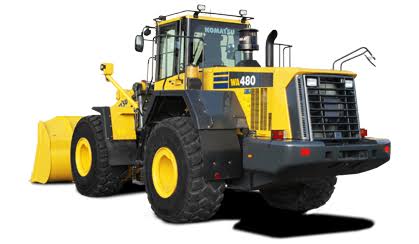

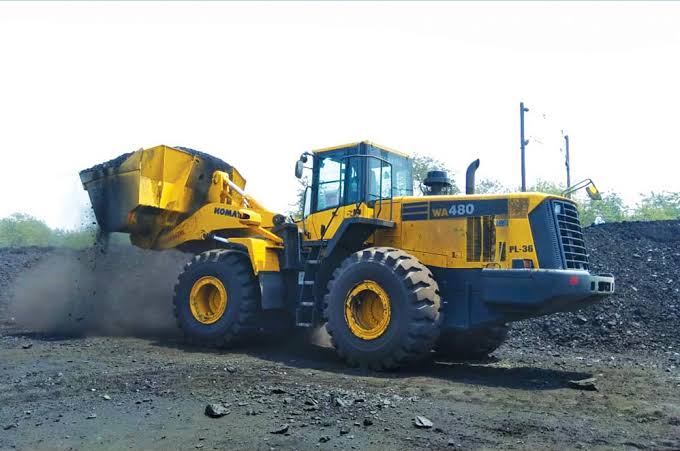

Komatsu WA480-6 Wheel Loader
1 / 5
Image 1 of 5
Image: komatsu.com

Specifications

41 data points

Operating Specifications

Operating Specifications specifications
Operating Weight54,510 lb
Fuel Capacity109.1 gal
Hydraulic System Fluid Capacity45.7 gal
Static Tipping Weight45,020 lb
Turning Radius606 in
Engine Oil Fluid Capacity10.0 gal
Front Axle/Diff Fluid Capacity15.6 gal
Rear Axle/Diff Fluid Capacity15.6 gal
Cooling System Fluid Capacity16.1 gal
Transmission Fluid Capacity14.3 gal
Rated Bucket Capacity5.40 – 8.00 yd³

Engine

Engine specifications
Engine ModelSAA6D125E-5
Displacement674 in³
Power Measured @2,000 rpm
Gross Power300.0 hp
Net Power299.0 hp
Number of Cylinders12
AspirationTurbo-charged

Weights

Weights specifications
Operating Weight54,420 – 54,840 lb

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity63.9 gal/min
Raise Time7.0 s
Lower Time3.8 s
Dump Time1.9 s
Relief Valve Setting3,555 psi
Pump TypeDouble-acting piston type

Dimensions

Dimensions specifications
Ground Clearance22 in
Height - Top of Cab138 in
Wheelbase137 in
Width Over Tires120 in
Length with Bucket on Ground369 in
Hinge Pin - Max Height178 in

Transmission

Transmission specifications
Max Speed - Forward21.4 mph
Max Speed - Reverse22.1 mph
Transmission Typefull-powershift countershaft type
Number of Forward Gears4
Number of Reverse Gears4

Bucket

Bucket specifications
Bucket Capacity - heaped6.00 yd³
Bucket Capacity - struck5.21 yd³
Dump Clearance at Max Raise126 in
Breakout Force47,660 lb
Bucket Width126 in
