Komatsu

WA500-3L

Wheel Loader

Operating Weight
64,970 lb
Gross Power
315.0 hp
All wheel loaders

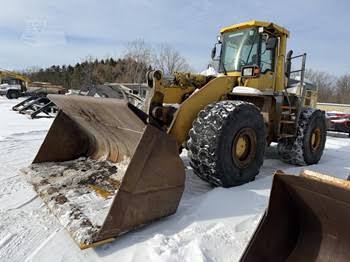

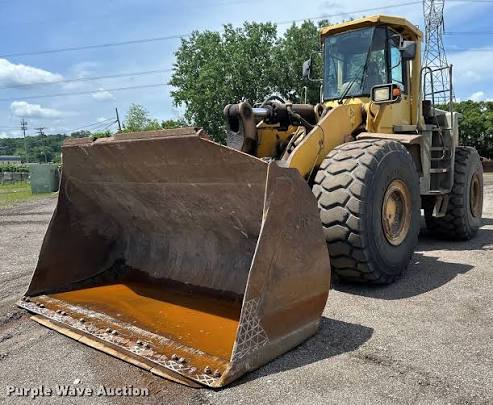

Komatsu WA500-3L Wheel Loader
1 / 5
Image 1 of 5
Image: ironplanet.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight64,970 lb
Fuel Capacity121.5 gal
Tire Size25-26.5
Hydraulic System Fluid Capacity46.2 gal
Static Tipping Weight51,588 lb
Operating Voltage24 V
Turning Radius257 in
Engine Oil Fluid Capacity9.8 gal
Rear Axle Oscillation30 °
Alternator Supplied Amperage50 A
Front Axle/Diff Fluid Capacity20.6 gal
Rear Axle/Diff Fluid Capacity20.6 gal
Cooling System Fluid Capacity26.2 gal
Transmission Fluid Capacity16.4 gal

Engine

Engine specifications
Engine ModelSAD140E
Displacement928 in³
Power Measured @2,100 rpm
Gross Power315.0 hp
Number of Cylinders6
AspirationTURBOCHARGED

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity91.9 gal/min
Raise Time6.4 s
Lower Time3.5 s
Dump Time1.7 s
Relief Valve Setting3,046 psi
Pump TypeGEAR PUMP

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab152 in
Wheelbase142 in
Width Over Tires126 in
Reach at Max Lift and Dump52 in
Length with Bucket on Ground362 in
Hinge Pin - Max Height178 in

Transmission

Transmission specifications
Max Speed - Forward20.5 mph
Max Speed - Reverse22.4 mph
Transmission TypePOWERSHIFT
Number of Forward Gears4
Number of Reverse Gears4
