432D
Backhoe Loader
38 specifications
1 / 5

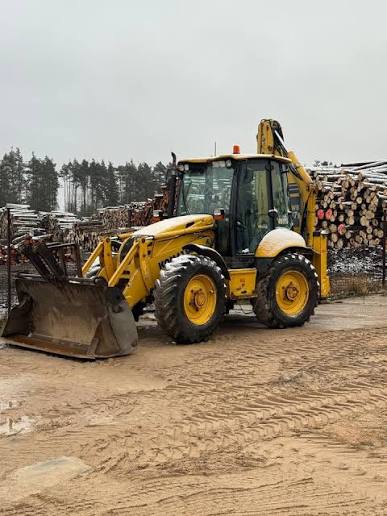

Image 1 of 5
Specifications
44 data points
Operating Specifications
| Operating Weight 4wd | 12,456 lb |
|---|---|
| Fuel Capacity | 18.5 gal |
| Hydraulic System Fluid Capacity | 17.2 gal |
| Cooling System Fluid Capacity | 4.0 gal |
| Tire Size Front - 2wd / 4wd | 12.5 x 20 |
| Operating Voltage | 12 V |
| Oil System Fluid Capacity | 2.7 gal |
| Alternator Supplied Amperage | 60 A |
| Max Weight | 14,110 lb |
| Rear Axle Fluid Capacity | 1.4 gal |
| Front Axle Fluid Capacity | 1.1 gal |
Engine
| Engine Model | 4D98E-1FA |
|---|---|
| Displacement | 203 in³ |
| Power Measured @ | 2,500 rpm |
| Net Power | 70.8 hp |
| Number of Cylinders | 4 |
| Torque Measured @ | 1,200 rpm |
| Net Max Torque | 185 lb-ft |
Hydraulic System
| Pump Flow Capacity | 30.7 gal/min |
|---|---|
| Relief Valve Pressure | 2,901 psi |
| Pump Type | two gear pumps |
Dimensions
| Ground Clearance | 18 in |
|---|---|
| Wheelbase | 85 in |
| Transport Width | 73 in |
| Height to Top of Suspended Cab | 106 in |
Transmission
| Max Speed | 24.3 mph |
|---|---|
| Max Speed - Reverse | 24.3 mph |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 4 |
| Transmission Type | Hydrostatic |
Tires & Wheels
| Rear Tires Size | 12.5 x 20 |
|---|
Backhoe
| Dig Depth | 145 in |
|---|---|
| Reach From Swivel | 185 in |
| Dig Depth - Extended | 174 in |
| Load Height - Extended | 143 in |
| Bucket Dig Force | 9,259 lb |
| Reach From Swivel - Extended | 210 in |
| Reach at Load Height - Extended | 61 in |
Loader
| Bucket Capacity | 0.99 yd³ |
|---|---|
| Clearance at Max Dump Height | 98 in |
| Bucket Breakout Force | 9,694 lb |
| Bucket Width | 73 in |
| Reach at Max Dump Height | 35 in |
| Dig Depth | 4 in |
