Kubota

B2301HSD

Tractor

Operating Weight
1,565 lb
Displacement
61 in³
Power Measured @
2,800 rpm
Gross Power
22.0 hp
All tractors
Kubota B2301HSD Tractor

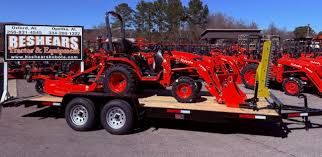

1 / 5
Image 1 of 5
Image: carletonequipment.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,565 lb
3 Point Hitch Lift Capacity @ 24 inches1,411 lb
3 Point Hitch TypeCategory I

Engine

Engine specifications
Engine ModelD1005
Displacement61 in³
Power Measured @2,800 rpm
Gross Power22.0 hp
Number of Cylinders3
AspirationTurbocharger with intercooler
Engine MakeKubota
PTO Power17.5 hp
Bore3 in
Stroke3 in
Engine TypeE-TVCS liquid cooled
Air cleanerDual paper element
Model NameB2301HSD

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity8.3 gal/min
Number of Remote Control Valves—
Hydraulic System TypeOpen center
Pump TypeDual pump

Dimensions

Dimensions specifications
Ground Clearance12 in
Wheelbase62 in
Overall Length94 in
Overall Width46 in
Height - Top of ROPS/FOPS84 in

Transmission

Transmission specifications
Max Speed - Reverse8.9 mph
Max Speed - Forward11.9 mph
Transmission TypeHST (3 ranges)
BrakesMulti-plate wet disc

Fluid Capacities

Fluid Capacities specifications
Fuel Tank6.1 gal
Engine Oil0.9 gal
Transmission4.0 gal

Tires & Wheels

Tires & Wheels specifications
TiresFront - 6-12 Rear - 9.5-16

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) TypeIndependent
