Kubota

B2601HSD

Tractor

Operating Weight
1,632 lb
Displacement
69 in³
Power Measured @
2,800 rpm
Gross Power
25.5 hp
All tractors

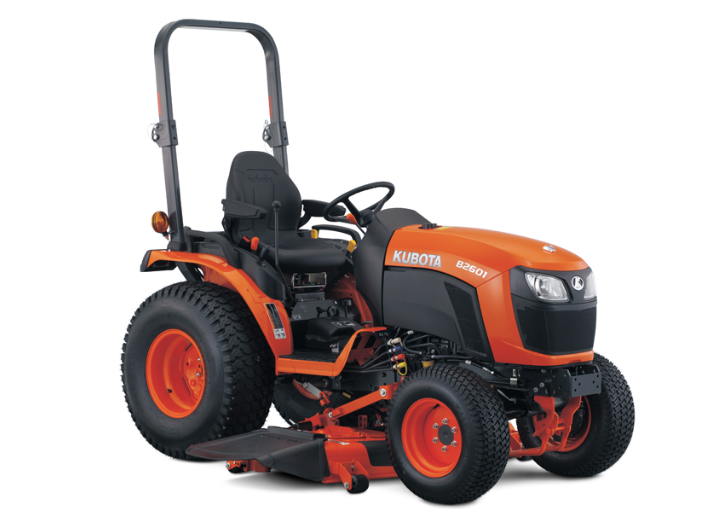

Kubota B2601HSD Tractor
1 / 5
Image 1 of 5
Image: binghamequipment.com

Specifications

34 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,632 lb
3 Point Hitch Lift Capacity @ 24 inches1,411 lb
3 Point Hitch TypeCategory I

Engine

Engine specifications
Engine ModelD1105
Displacement69 in³
Power Measured @2,800 rpm
Gross Power25.5 hp
Number of Cylinders3
AspirationTurbocharger with intercooler
Engine MakeKubota
PTO Power19.5 hp
Bore3 in
Stroke3 in
Engine TypeE-TVCS liquid cooled
Air cleanerDual paper element
Model NameB2601HSD

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity8.3 gal/min
Number of Remote Control Valves—
Hydraulic System TypeOpen center
Pump TypeDual pump

Dimensions

Dimensions specifications
Ground Clearance13 in
Wheelbase62 in
Overall Length95 in
Overall Width49 in
Height - Top of ROPS/FOPS84 in

Transmission

Transmission specifications
Max Speed - Reverse9.5 mph
Max Speed - Forward12.7 mph
Transmission TypeHST (3 ranges)
BrakesMulti-plate wet disc

Fluid Capacities

Fluid Capacities specifications
Fuel Tank6.1 gal
Engine Oil0.9 gal
Transmission4.0 gal

Tires & Wheels

Tires & Wheels specifications
TiresFront - 7-12 Rear - 11.2-16

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Power Take-Off(PTO) TypeIndependent
