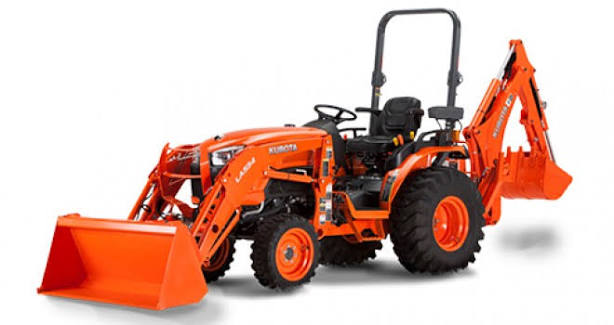

KubotaKubota
B2920
Tractor
23 specifications
1 / 5
Image 1 of 5
Specifications
49 data points
Operating Specifications
| Operating Weight | 1,786 lb |
|---|---|
| 3 Point Hitch Lift Capacity @ 24 inches | 1,676 lb |
| 3 Point Hitch Type | SAE Category 1 |
| Turning Radius | 83 in |
Engine
| Engine Model | D1305-E4-D26-R |
|---|---|
| Displacement | 77 in³ |
| Power Measured @ | 2,500 rpm |
| Gross Power | 26.0 hp |
| Number of Cylinders | 3 |
| Max Torque | 62 lb-ft |
| Engine Make | KUBOTA |
| PTO Power | 19.5 hp |
| Bore | 3 in |
| Stroke | 4 in |
| Engine Type | Indirect Injection |
| Alternator | 60 A |
| Air cleaner | 4.5 inch Dual paper element |
| Cooling system | Pressurized radiator |
| Battery | 12V RC : 80min CCA : 430A |
| Lubrication | Forced lubrication |
Hydraulic System
| Pump Flow Capacity | 8.8 gal/min |
|---|---|
| Hydraulic System Type | Open center |
| Pump Type | Dual pump |
| Hydraulic system | Position control |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Wheelbase | 66 in |
| Overall Length | 101 in |
| Overall Width | 54 in |
| Overall Height | 89 in |
| Rear Tread Range | 41 in |
| Front Tread Range | 37 in |
| Turning radius with brakes | 83 in |
Transmission
| Max Speed - Reverse | 9.5 mph |
|---|---|
| Max Speed - Forward | 11.9 mph |
| Number of Forward Gears | 3 |
| Transmission Type | HST (3 ranges) |
| Number of Reverse Gears | 3 |
| Differential lock | Standard |
| Brake type | Multi-plate wet disc |
| Final Drive Type | Spur gear |
Fluid Capacities
| Fuel Tank | 7.2 gal |
|---|---|
| Transmission | 4.0 gal |
| Engine coolant | 1.2 gal |
| Engine oil with filter | 1.1 gal |
Tires & Wheels
| Tires | Front - 7 - 12 Rear - 12.4-16 |
|---|
Power Take-Off (PTO)
| Rear PTO | SAE 1-3/8 6 splines |
|---|---|
| Mid- PTO | USA No. 5 (KUBOTA 10-tooth) involute spline |
| PTO speed rear | 540 rpm |
| PTO Speed Mid | 2,500 rpm |
