Kubota

B2650HSDC

Tractor

Operating Weight
2,293 lb
Displacement
77 in³
Power Measured @
2,500 rpm
Gross Power
26.0 hp
All tractors

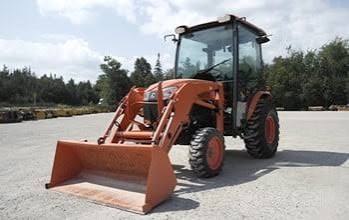

Kubota B2650HSDC Tractor
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

47 data points

Operating Specifications

Operating Specifications specifications
Operating Weight2,293 lb
3 Point Hitch Lift Capacity @ 24 inches1,676 lb
3 Point Hitch TypeCategory I
Turning Radius83 in

Engine

Engine specifications
Engine ModelD1305-E4-D26-Q
Displacement77 in³
Power Measured @2,500 rpm
Gross Power26.0 hp
Number of Cylinders3
Max Torque62 lb-ft
Engine MakeKUBOTA
PTO Power19.5 hp
Bore3 in
Stroke4 in
Alternator60 A
Air cleaner4.0 inch Dual paper element
Cooling systemPressurized radiator
Battery12 V RC : 80 min CCA : 430 A
LubricationForced lubrication
Horsepower - Gross19.5 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity8.8 gal/min
Hydraulic System TypeOpen center
Pump TypeDual pump
Hydraulic systemPosition control valve

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase66 in
Overall Length114 in
Overall Width16,380 in
Overall Height85 in
Rear Tread Range41 in
Front Tread Range37 in
Turning radius with brakes83 in

Transmission

Transmission specifications
Number of Forward Gears3
Transmission TypeMain-hydrostatic transmission
Number of Reverse Gears3
Differential lockStandard
Brake typeWet disk type
Final Drive TypeSpur gear

Fluid Capacities

Fluid Capacities specifications
Fuel Tank7.2 gal
Transmission4.0 gal
Engine coolant1.2 gal
Engine oil with filter1.1 gal

Tires & Wheels

Tires & Wheels specifications
TiresFront - 7 - 12 Rear - 12.4-16

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Rear PTOSAE 1-3/8 6 splines
Mid- PTOUSA No. 5 (KUBOTA 10-tooth) involute spline
PTO speed rear540 rpm
PTO Speed Mid2,500 rpm
