Kubota

B2910HSD

Tractor

Operating Weight
1,763 lb
Displacement
92 in³
Power Measured @
2,600 rpm
Gross Power
30.0 hp
All tractors

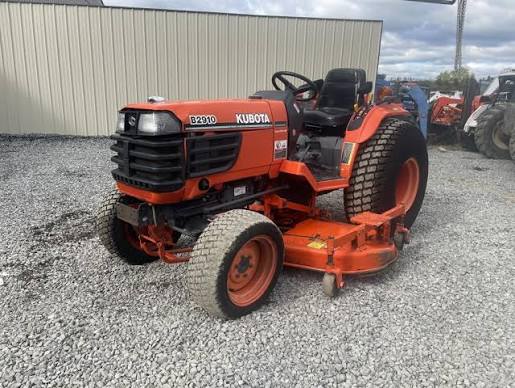

Kubota B2910HSD Tractor
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

22 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,763 lb
Fuel Capacity6.9 gal
3 Point Hitch Lift Capacity @ 24 inches1,301 lb
3 Point Hitch TypeCat I
Cooling System Fluid Capacity1.2 gal
Engine Oil Capacity1.1 gal

Engine

Engine specifications
Engine ModelV1505
Displacement92 in³
Power Measured @2,600 rpm
Gross Power30.0 hp
Number of Cylinders4
AspirationE-TVCS liquid cooled
PTO Power22.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity9.6 gal/min

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase66 in
Overall Length8 in
Tire Sizefront 7-12 rear 12.4-16
Width Outside Frame54 in

Transmission

Transmission specifications
Max Speed11.9 mph
Transmission TypeHST 3 range

Axles

Axles specifications
Final DriveSpur gear
