Kubota

B7800

Tractor

Operating Weight
1,742 lb
Displacement
92 in³
Power Measured @
2,900 rpm
Gross Power
30.0 hp
All tractors

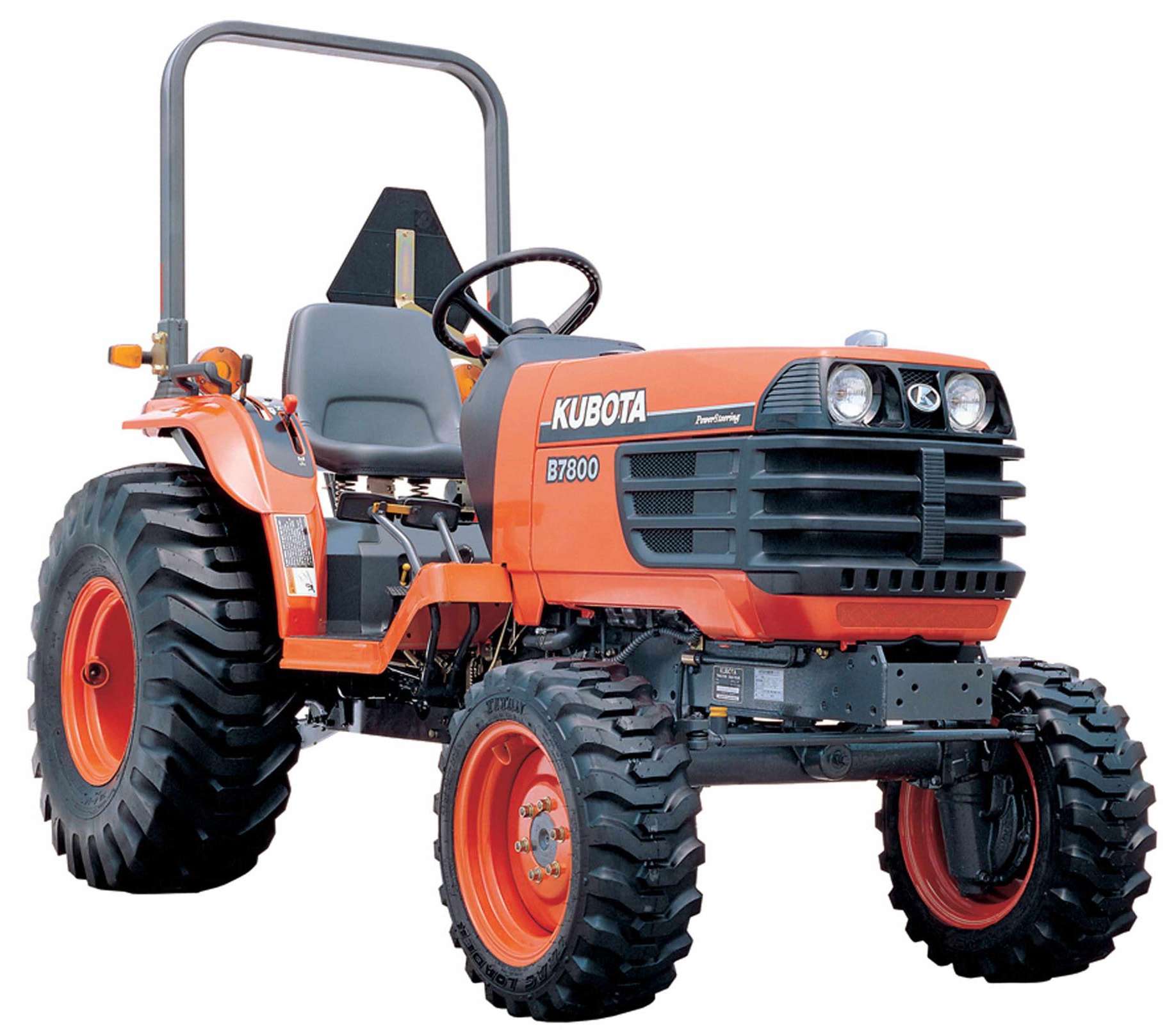

Kubota B7800 Tractor
1 / 5
Image 1 of 5
Image: allmachines.com

Specifications

27 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,742 lb
Fuel Capacity6.9 gal
3 Point Hitch Lift Capacity @ 24 inches1,301 lb
3 Point Hitch Typecat. I
Turning Radius83 in
Cooling System Fluid Capacity1.2 gal
Engine Oil Capacity1.1 gal

Engine

Engine specifications
Engine ModelV1505-E-D16
Displacement92 in³
Power Measured @2,900 rpm
Gross Power30.0 hp
Number of Cylinders4
AspirationE-TVCS liquid cooled
PTO Power22.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity9.6 gal/min

Dimensions

Dimensions specifications
Ground Clearance15 in
Wheelbase66 in
Overall Length8 in
Tire Sizefront 7-12 rear 12.4-16
Width Outside Frame54 in

Transmission

Transmission specifications
Max Speed11.9 mph
Number of Forward Gears3
Transmission TypeHST 3 range
Number of Reverse Gears3

Production

Production specifications
SeriesB Series
Years Manufactured2,003 – 2,008

Axles

Axles specifications
Final Drivespur gear
