Kubota

BX1850

Tractor

Operating Weight
1,257 lb
Displacement
44 in³
Power Measured @
3,200 rpm
Gross Power
18.0 hp
All tractors

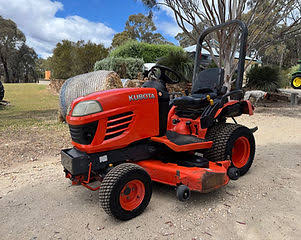

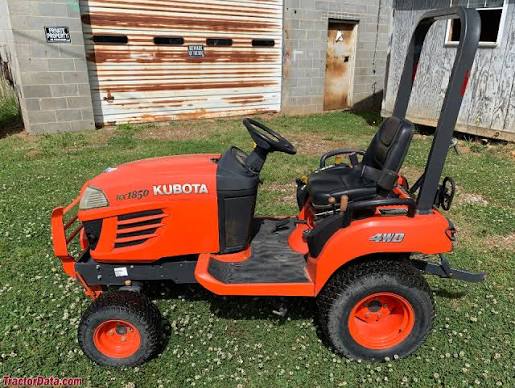

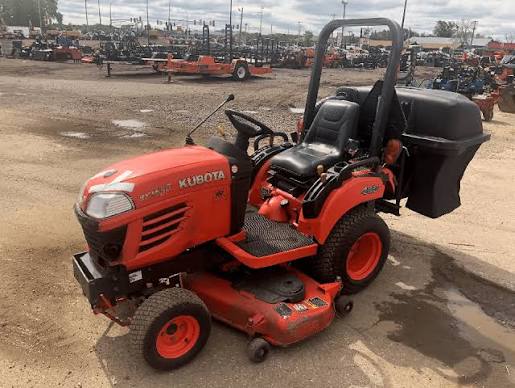

Kubota BX1850 Tractor
1 / 5
Image 1 of 5
Image: locustpointrents.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,257 lb
Fuel Capacity6.7 gal
3 Point Hitch Lift Capacity @ 24 inches661 lb
3 Point Hitch Typecat. I
Turning Radius88 in
Cooling System Fluid Capacity0.8 gal
Engine Oil Capacity0.8 gal

Engine

Engine specifications
Engine ModelD722
Displacement44 in³
Power Measured @3,200 rpm
Gross Power18.0 hp
Number of Cylinders3
AspirationE-TVCS liquid cooled
PTO Power13.7 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity6.4 gal/min

Dimensions

Dimensions specifications
Ground Clearance1 in
Wheelbase53 in
Overall Length8 in
Tire Sizefront 16x7.50 turf rear 24x12.00-12 turf
Width Outside Frame32 in

Transmission

Transmission specifications
Max Speed7.8 mph
Transmission TypeHST 2 range

Production

Production specifications
SeriesBX50 Series
Years Manufactured2,006 – 2,008

Axles

Axles specifications
Final Drivespud gear
