Kubota

BX2380

Tractor

Operating Weight
1,433 lb
Displacement
55 in³
Power Measured @
3,450 rpm
Gross Power
23.0 hp
All tractors

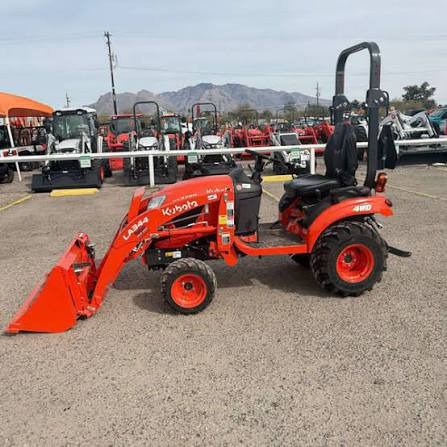

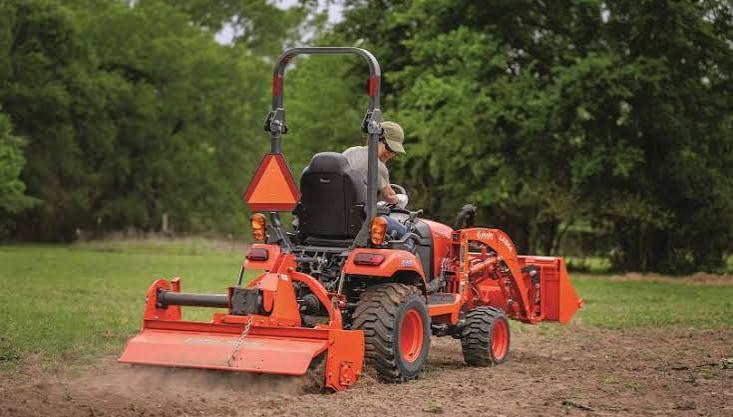

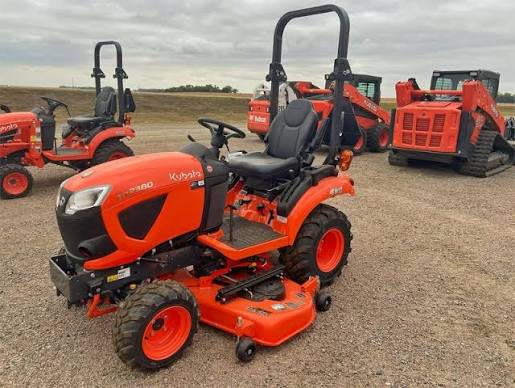

Kubota BX2380 Tractor
1 / 5
Image 1 of 5
Image: sneadtractor.com

Specifications

38 data points

Operating Specifications

Operating Specifications specifications
Operating Weight1,433 lb
Fuel Capacity6.6 gal
3 Point Hitch Lift Capacity @ 24 inches683 lb
3 Point Hitch TypeSAE Category I
Turning Radius91 in
Cooling System Fluid Capacity0.9 gal

Engine

Engine specifications
Engine ModelD902
Displacement55 in³
Power Measured @3,450 rpm
Gross Power23.0 hp
Number of Cylinders3
Max Torque41 lb-ft
Engine MakeKUBOTA
PTO Power17.7 hp
Stroke3 in
Bore3 in
Engine TypeLiquid-cooled 3-cylinder diesel

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity6.2 gal/min
Number of Remote Control Valves2
Relief Valve Pressure1,790 psi

Dimensions

Dimensions specifications
Ground Clearance8 in
Wheelbase55 in
Tire Size24x12.00-12
Height - Top of ROPS/FOPS84 in
Rear Tread Range32 in
Front Tread Range37 in
Width45 in

Transmission

Transmission specifications
Number of Forward Gears2
Transmission TypeHydrostatic transmission
Number of Reverse Gears2
Travelspeeds(FRWD)Speed range—

Brakes & Steering

Brakes & Steering specifications
Brakes TypeWet disc

Drive System

Drive System specifications
Drive4WD

Production

Production specifications
SeriesBX80 Series
Years Manufactured—

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
Rear PTOSTD (2500rpm)
Mid- PTOLive independent PTO
PTO typeSTD (540rpm)
