KubotaKubota

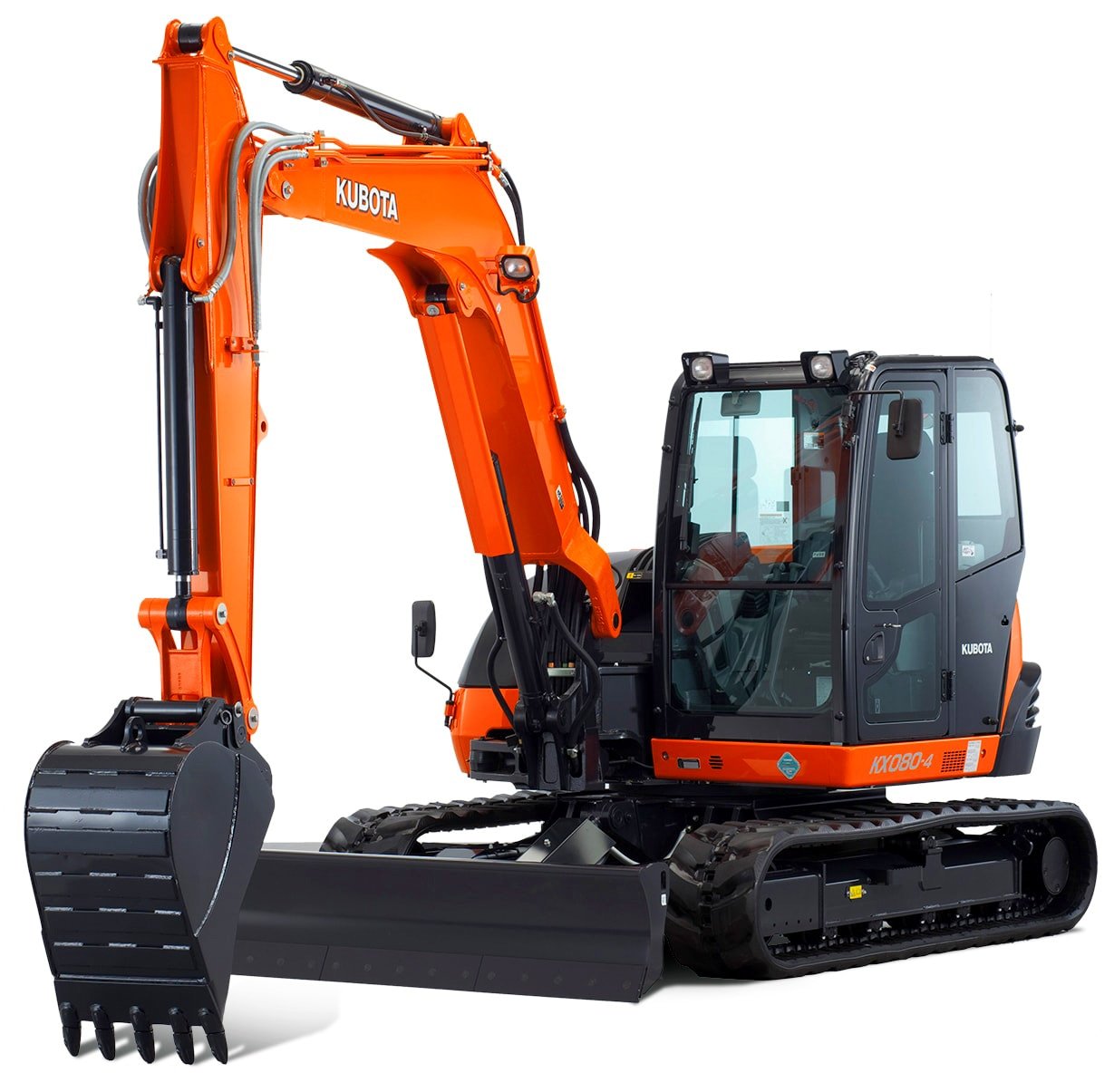

KX080-4SW
Mini Excavator
35 specifications
1 / 5
Image 1 of 5
Specifications
35 data points
Operating Specifications
| Operating Weight | 41,160 lb |
|---|---|
| Operating weight Cabin | 27,337 lb |
| Fuel Capacity | 30.4 gal |
| Hydraulic Pump Flow Capacity | 19.9 gal/min |
| Hydraulic System Fluid Capacity | 35.7 gal |
| Travel speed, high range | 3.1 mph |
| Travel speed, low range | 1.7 mph |
| Auxiliary hydraulic flow | 26.5 gal/min |
| Auxiliary fuel tank | 17.6 gal |
Engine
| Engine Model | V3307-CR-TE4 |
|---|---|
| Displacement | 9,739 in³ |
| Power Measured @ | 2,000 rpm |
| Gross Power | 66.6 hp |
| Net Power | 62.3 hp |
| Engine Make | Kubota |
| Model Name | KX080-4 Angle Blade |
Dimensions
| Ground Clearance | 15 in |
|---|---|
| Overall Length | 254 in |
| Overall Width | 87 in |
| Tail Swing Radius | 57 in |
| Crawler length | 115 in |
Undercarriage
| Ground Pressure | 5 psi |
|---|---|
| Shoe Size | 18 in |
Boom/Stick Excavator Option 1
| Max Digging Depth | 181 in |
|---|---|
| Max Vertical Wall Digging Depth | 152 in |
| Max.Dumping Height | 207 in |
| Max Digging Height | 288 in |
| Mximum dig radius | 289 in |
Boom
| Boom swing left | 70 ° |
|---|---|
| Boom swing right | 60 ° |
Swing Mechanism
| Swing Speed | 9 rpm |
|---|
Blades
| Blade Width | 88 in |
|---|---|
| Blade Lift Height | 20 in |
| Maximum Drop below ground | 20 in |
| Overall Height | 101 in |
