Kubota
Fendt
209 VA
Tractor
19 specifications
1 / 5

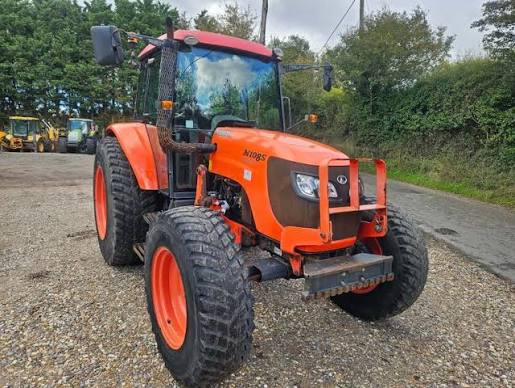

Image 1 of 5
Specifications
24 data points
Operating Specifications
| Operating Weight | 8,047 lb |
|---|---|
| Fuel Capacity | 46.3 gal |
| 3 Point Hitch Lift Capacity @ 24 inches | 1,654 lb |
| Turning Radius | 186 in |
Engine
| Engine Model | V3800-DI-TIE2 |
|---|---|
| Displacement | 230 in³ |
| Power Measured @ | 2,600 rpm |
| Net Power | 108.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Turbocharged with Intercooler |
| Engine Make | Kubota |
| PTO Power | 97.0 hp |
| Stroke | 5 in |
| Bore | 4 in |
Hydraulic System
| Pump Flow Capacity | 17.2 gal/min |
|---|---|
| Number of Remote Control Valves | 1 |
Dimensions
| Ground Clearance | 17 in |
|---|---|
| Wheelbase | 96 in |
| Overall Length | 160 in |
| Overall Width | 88 in |
| Height - Top of ROPS/FOPS | 106 in |
Transmission
| Number of Forward Gears | 16 |
|---|---|
| Transmission Type | Fully Synchronized |
| Number of Reverse Gears | 16 |
