Kubota

M4800SU

Tractor

Operating Weight
3,748 lb
Displacement
148 in³
Power Measured @
2,700 rpm
Gross Power
51.0 hp
All tractors

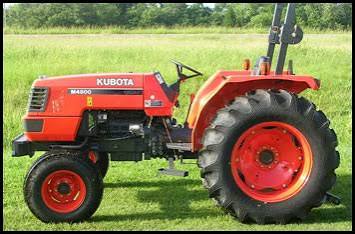

Kubota M4800SU Tractor
1 / 5
Image 1 of 5
Image: tractorhouse.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Operating Weight3,748 lb
Fuel Capacity14.6 gal
3 Point Hitch Lift Capacity @ 24 inches3,307 lb
3 Point Hitch TypeCat I & II
Turning Radius122 in
Alternator Supplied Amperage55 A
Operating Voltage12 V
Cooling System Fluid Capacity1.9 gal
Engine Oil Capacity2.0 gal

Engine

Engine specifications
Engine ModelV2403
Displacement148 in³
Power Measured @2,700 rpm
Gross Power51.0 hp
Number of Cylinders4
AspirationE-TVCS indirect injection
PTO Power43.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.1 gal/min

Dimensions

Dimensions specifications
Ground Clearance18 in
Height - Top of Cab94 in
Wheelbase79 in
Overall Length12 in
Tire Sizefront 6.50-16F2 rear 14.9-28 R1
Width Outside Frame69 in

Transmission

Transmission specifications
Max Speed18.0 mph
Number of Forward Gears8
Transmission Typepartially synchronized
Number of Reverse Gears4

Axles

Axles specifications
Final Driveplanetary
