Kubota

M6H-101

Tractor

Operating Weight
8,157 lb
Displacement
203 in³
Power Measured @
2,600 rpm
Gross Power
104.4 hp
All tractors

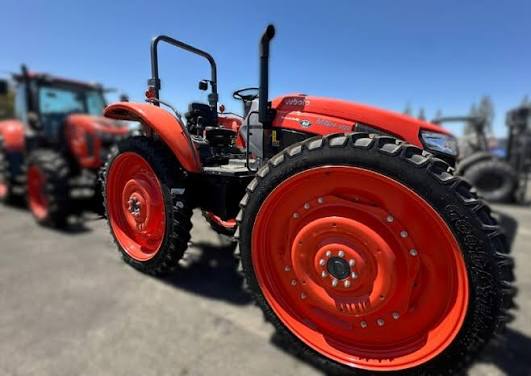

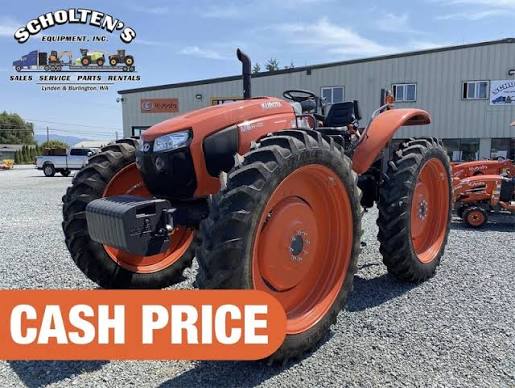

Kubota M6H-101 Tractor
1 / 5
Image 1 of 5
Image: tractorzoom.com

Specifications

20 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,157 lb
Fuel Capacity12.2 gal
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelV3800-TIEF4
Displacement203 in³
Power Measured @2,600 rpm
Gross Power104.4 hp
Number of Cylinders4
Engine MakeKubota
PTO Power84.0 hp
Model NameM6H-101

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.6 gal/min

Dimensions

Dimensions specifications
Ground Clearance26 in
Height - Top of Cab113 in
Wheelbase95 in
Overall Length168 in
Tire Sizefront 12 rear 24 (with Creep)
Width80 in
Standard tireFront-13.6-38Rear-13.6-38 (steel)

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
ClutchHydraulic Wet Clutch
