Kubota

M6S-111SDSCC

Tractor

Operating Weight
8,157 lb
Displacement
203 in³
Power Measured @
2,600 rpm
Gross Power
114.0 hp
All tractors

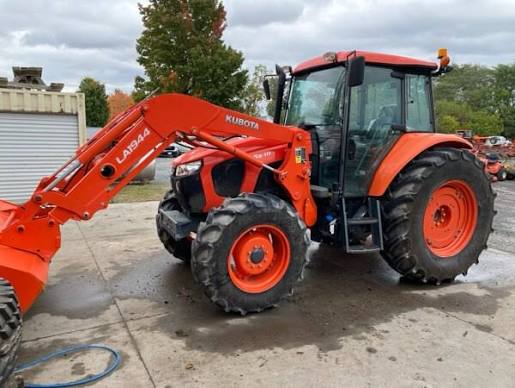

Kubota M6S-111SDSCC Tractor
1 / 5
Image 1 of 5
Image: carletonequipment.com

Specifications

21 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,157 lb
Fuel Capacity4.7 gal
Alternator Supplied Amperage80 A

Engine

Engine specifications
Engine ModelV3800-TIEF4
Displacement203 in³
Power Measured @2,600 rpm
Gross Power114.0 hp
Net Power105.0 hp
Number of Cylinders4
Engine MakeKubota
PTO Power95.0 hp
Model NameM6S-111SDS

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.6 gal/min

Dimensions

Dimensions specifications
Ground Clearance17 in
Height - Top of Cab106 in
Wheelbase96 in
Overall Length163 in
Tire Sizefront 12 rear 24 (with Creep)
Width94 in
Standard tireFront-13.6-38Rear-13.6-38 (steel)

Power Take-Off (PTO)

Power Take-Off (PTO) specifications
ClutchHydraulic Wet Clutch
