Kubota

M96SDSC

Tractor

Operating Weight
8,025 lb
Displacement
230 in³
Power Measured @
2,600 rpm
All tractors

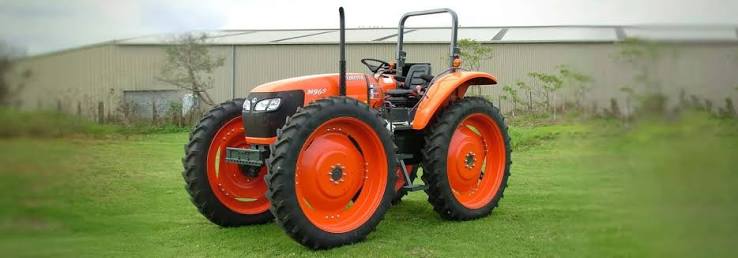

Kubota M96SDSC Tractor
1 / 5
Image 1 of 5
Image: marketbook.com.na

Specifications

23 data points

Operating Specifications

Operating Specifications specifications
Operating Weight8,025 lb
Fuel Capacity46.3 gal
3 Point Hitch Lift Capacity @ 24 inches4,630 lb
3 Point Hitch TypeCat II
Turning Radius186 in
Alternator Supplied Amperage60 A

Engine

Engine specifications
Engine ModelV3800-DI-T
Displacement230 in³
Power Measured @2,600 rpm
Net Power95.0 hp
Number of Cylinders4
Aspirationturbocharged
PTO Power84.0 hp

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity17.2 gal/min
Number of Remote Control Valves1

Dimensions

Dimensions specifications
Height - Top of Cab104 in
Wheelbase96 in
Overall Length14 in
Tire Sizefront 12.4-24 rear 18.4-30 Cast
Width Outside Frame91 in

Transmission

Transmission specifications
Number of Forward Gears32
Transmission Typefully synchronized
Number of Reverse Gears32
