Letourneau

L2350

Wheel Loader

Gross Power
2,300.0 hp
All wheel loaders

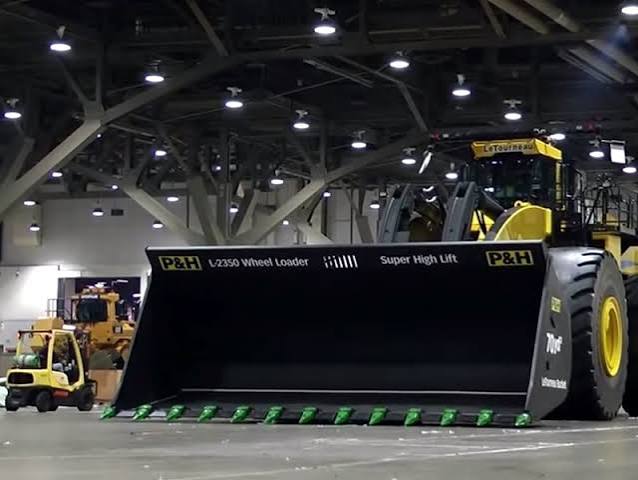

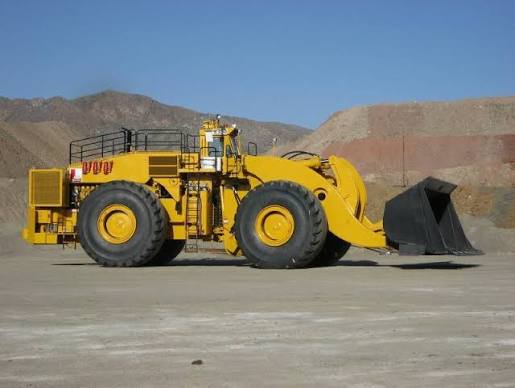

Letourneau L2350 Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

25 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity1,050.0 gal
Hydraulic System Fluid Capacity382.0 gal
Rear Axle Oscillation26 °
Front Axle/Diff Fluid Capacity25.1 gal
Rear Axle/Diff Fluid Capacity25.1 gal
Cooling System Fluid Capacity130.0 gal
Transmission Fluid Capacity7.2 gal

Engine

Engine specifications
Engine ModelQSK 60
Displacement2,746 in³
Power Measured @1,900 rpm
Gross Power2,300.0 hp
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity374.9 gal/min
Raise Time16.0 s
Lower Time6.0 s
Dump Time3.0 s
Relief Valve Setting4,000 psi
Pump Typepiston

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab254 in
Wheelbase311 in
Width Over Tires267 in

Transmission

Transmission specifications
Max Speed - Forward10.6 mph
Max Speed - Reverse10.6 mph
Transmission Typeinfinitely variable
