Letourneau

L950

Wheel Loader

Gross Power
1,050.0 hp
All wheel loaders

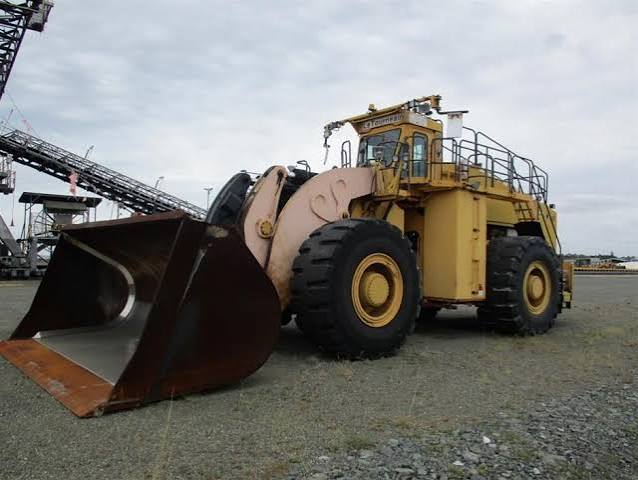

Letourneau L950 Wheel Loader
1 / 5
Image 1 of 5
Image: ironmartonline.com

Specifications

28 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity564.7 gal
Tire Size45/65-45
Hydraulic System Fluid Capacity260.0 gal
Engine Oil Fluid Capacity34.9 gal
Rear Axle Oscillation22 °
Front Axle/Diff Fluid Capacity6.1 gal
Rear Axle/Diff Fluid Capacity6.1 gal
Cooling System Fluid Capacity50.2 gal
Transmission Fluid Capacity5.1 gal

Engine

Engine specifications
Engine ModelQST 30
Displacement1,861 in³
Power Measured @1,900 rpm
Gross Power1,050.0 hp
Aspirationturbocharged

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity250.0 gal/min
Raise Time10.0 s
Lower Time5.0 s
Dump Time2.0 s
Relief Valve Setting3,700 psi
Pump Typepiston pump

Dimensions

Dimensions specifications
Ground Clearance23 in
Height - Top of Cab222 in
Wheelbase234 in
Width Over Tires193 in

Transmission

Transmission specifications
Max Speed - Forward15.0 mph
Max Speed - Reverse15.0 mph
Transmission Typeinfinitely variable

Bucket

Bucket specifications
Bucket Width200 in
