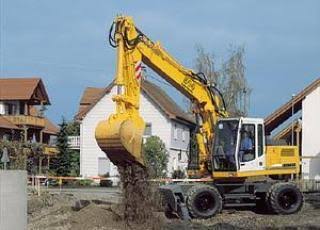

Liebherr A914B Excavator
1 / 5
Image 1 of 5
Image: truck1.eu

Specifications

59 data points

Operating Specifications

Operating Specifications specifications
Fuel Capacity95.2 gal
Hydraulic Pump Flow Capacity105.7 gal/min
Hydraulic System Fluid Capacity116.3 gal
Hydraulic System Relief Valve Pressure5,076 psi
Operating Voltage24 V
Alternator Supplied Amperage55 A
Hydraulic Pump TypeVariable displacement swashplate
Tire Size10.00-20

Engine

Engine specifications
Engine ModelD 924 Tl-E
Displacement403 in³
Power Measured @2,000 rpm
Number of Cylinders4
Aspirationdirect injection turbo-charged and after-cooled reduced emissions

Dimensions

Dimensions specifications
Ground Clearance15 in
Height - Top of Cab126 in
Wheelbase109 in
Overall Width8 in
Tail Swing Radius109 in
Digging Depth228 in
Digging Reach228 in
Upper Structure Clearance52 in
Overall Width - Outriggers Down158 in

Transmission

Transmission specifications
Max Travel Speed12.5 mph
Transmission Typeoversized two speed power shift transmission with additional creeper speed
Number of Forward Gears2
Number of Reverse Gears2

Bucket

Bucket specifications
Reference Bucket Capacity1.10 yd³
Maximum Bucket Capacity1.90 yd³
Minimum Bucket Capacity0.41 yd³

Swing Mechanism

Swing Mechanism specifications
Swing Speed9 rpm
Swing Torque49 lb-ft

Boom/Stick Mobile Excavator Option 1

Boom/Stick Mobile Excavator Option 1 specifications
Max Digging Depth230 in
Max Cutting Height393 in
Max Reach Along Ground356 in
Max Loading Height267 in
Shipping Length of Unit367 in
Shipping Height of Unit126 in
Max Vertical Wall Dig Depth156 in

Boom/Stick Mobile Excavator Option 2

Boom/Stick Mobile Excavator Option 2 specifications
Max Digging Depth243 in
Max Cutting Height401 in
Max Reach Along Ground369 in
Max Loading Height275 in
Shipping Height of Unit126 in
Shipping Length of Unit367 in
Max Vertical Wall Dig Depth168 in

Boom/Stick Mobile Excavator Option 3

Boom/Stick Mobile Excavator Option 3 specifications
Max Digging Depth254 in
Max Cutting Height41 in
Max Reach Along Ground380 in
Max Loading Height282 in
Shipping Height of Unit126 in
Shipping Length of Unit367 in
Max Vertical Wall Dig Depth180 in

Boom/Stick Mobile Excavator Option 4

Boom/Stick Mobile Excavator Option 4 specifications
Max Digging Depth254 in
Max Cutting Height408 in
Max Reach Along Ground380 in
Max Loading Height282 in
Shipping Height of Unit126 in
Shipping Length of Unit367 in
Max Vertical Wall Dig Depth192 in
