TWL3036
Wheel Loader
41 specifications
1 / 5

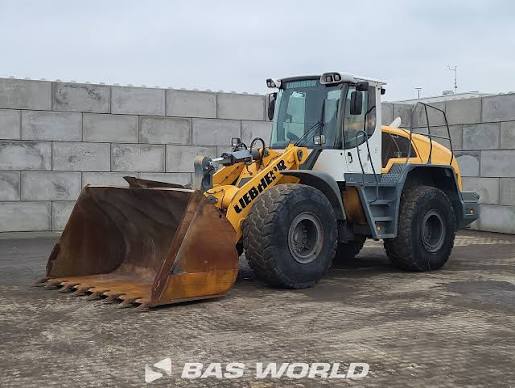

Image 1 of 5
Specifications
50 data points
Operating Specifications
| Operating Weight | 38,140 lb |
|---|---|
| Fuel Capacity | 79.0 gal |
| Tire Size | 23.5R25 L3 |
| Hydraulic System Fluid Capacity | 64.7 gal |
| Static Tipping Weight | 26,785 lb |
| Turning Radius | 254 in |
| Engine Oil Fluid Capacity | 10.6 gal |
| Front Axle/Diff Fluid Capacity | 9.2 gal |
| Rear Axle/Diff Fluid Capacity | 9.2 gal |
| Cooling System Fluid Capacity | 11.1 gal |
| Transmission Fluid Capacity | 3.0 gal |
| Hydraulic Fluid Capacity | 35.7 gal |
Engine
| Engine Model | D934 A7 |
|---|---|
| Displacement | 428 in³ |
| Power Measured @ | 1,500 rpm |
| Gross Power | 173.0 hp |
| Number of Cylinders | 4 |
| Aspiration | Water-cooled with exhaust turbo charging externally cooled exhaust gas recirculation and diesel particulate filter |
| Torque Measured @ | 1,300 rpm |
| Max Torque | 622 lb-ft |
| Bore | 5 in |
| Stroke | 6 in |
| Air cleaner | Dry air filter with main and safety element pre-cleaner service indicator on the display |
| Fuel injection | Electronic Common Rail high-pressure injection |
Hydraulic System
| Pump Flow Capacity | 62.0 gal/min |
|---|---|
| Raise Time | 5.5 s |
| Lower Time | 2.7 s |
| Dump Time | 2.3 s |
| Relief Valve Setting | 4,351 psi |
| Pump Type | Load-sensing variable axial piston pump with output and flow control and pressure cut-off in the control block |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 132 in |
| Wheelbase | 121 in |
| Reach at Max Lift and Dump | 44 in |
| Length with Bucket on Ground | 326 in |
| Hinge Pin - Max Height | 145 in |
Transmission
| Max Speed - Forward | 24.9 mph |
|---|---|
| Max Speed - Reverse | 24.9 mph |
| Number of Forward Gears | 3 |
| Number of Reverse Gears | 3 |
Bucket
| Bucket Capacity - heaped | 4.20 yd³ |
|---|---|
| Dump Clearance at Max Raise | 114 in |
| Breakout Force | 31,475 lb |
| Bucket Width | 97 in |
| Digging depth | 36 in |
| Arm length | 103 in |
Electrical System
| Voltage | 24 V |
|---|---|
| Alternator | — |
| Battery | 2 x 140 Ah |
| Starter | 24/10.5 (V/HP) |
