Liebherr
L550 XPOWER
- Operating Weight
- 39,020 lb
- Bucket Capacity - heaped
- 3.90 yd³
- Gross Power
- 192.0 hp
- Net Power
- 218.6 hp
1 / 5

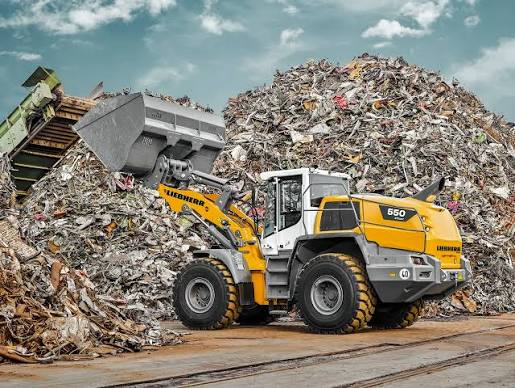

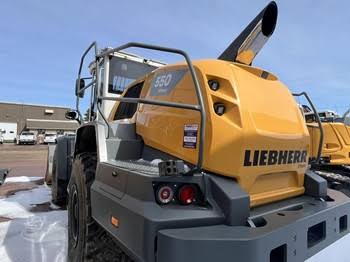

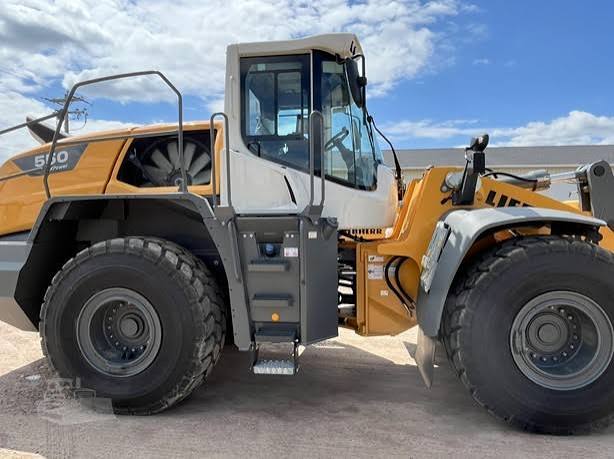

Image 1 of 5
Specifications
47 data points
Operating Specifications
| Operating Weight | 39,020 lb |
|---|---|
| Fuel Capacity | 74.0 gal |
| Tire Size | 23.5R25 L3 |
| Hydraulic System Fluid Capacity | 46.2 gal |
| Static Tipping Weight | 27,560 – 27 lb |
| Turning Radius | 263 in |
| Engine Oil Fluid Capacity | 6.9 gal |
| Front Axle/Diff Fluid Capacity | 9.2 gal |
| Rear Axle/Diff Fluid Capacity | 9.2 gal |
| Cooling System Fluid Capacity | 17.7 gal |
| Hydraulic Fluid Capacity | 27.7 gal |
Engine
| Engine Model | D934 A7 |
|---|---|
| Displacement | 428 in³ |
| Power Measured @ | 1,800 rpm |
| Gross Power | 192.0 hp |
| Net Power | 218.6 hp |
| Number of Cylinders | 4 |
| Aspiration | Water-cooled in-line engine with charge-air cooling exhaust after-treatment through Liebherr-SCR technology |
| Torque Measured @ | 1,100 rpm |
| Max Torque | 896 lb-ft |
| Bore | 5 in |
| Stroke | 6 in |
| Air cleaner | Dry type filter with main and safety element pre-cleaner service indicator on the Liebherr display |
| Fuel injection | Electronic Common Rail high-pressure injection |
| Engine Power | 219.0 hp |
Hydraulic System
| Pump Flow Capacity | 62.0 gal/min |
|---|---|
| Raise Time | 5.5 s |
| Lower Time | 2.7 s |
| Dump Time | 2.3 s |
| Relief Valve Setting | 4,351 psi |
| Pump Type | Load-sensing variable axial piston pump with output and flow control and pressure cut-off in the control block |
Dimensions
| Ground Clearance | 20 in |
|---|---|
| Height - Top of Cab | 133 in |
| Wheelbase | 134 in |
| Reach at Max Lift and Dump | 47 in |
| Length with Bucket on Ground | 337 in |
| Hinge Pin - Max Height | 161 in |
Bucket
| Bucket Capacity - heaped | 3.90 yd³ |
|---|---|
| Dump Clearance at Max Raise | 114 in |
| Breakout Force | 28,101 lb |
| Bucket Width | 97 in |
| Digging depth | 36 in |
| Arm length | 103 in |
Electrical System
| Voltage | 24 V |
|---|---|
| Alternator | — |
| Battery | 2 x 180 Ah |
| Starter | 24/10.5 (V/HP) |
