Liebherr

L556 XPOWER

Wheel Loader

Operating Weight
40,565 lb
Bucket Capacity - heaped
4.30 yd³
Gross Power
225.0 hp
Net Power
221.0 hp
All wheel loaders

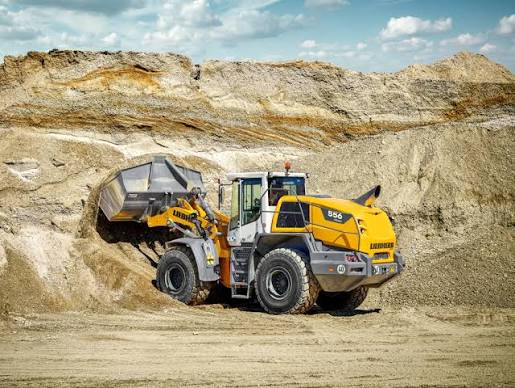

Liebherr L556 XPOWER Wheel Loader
1 / 5
Image 1 of 5
Image: veritread.com

Specifications

46 data points

Operating Specifications

Operating Specifications specifications
Operating Weight40,565 lb
Fuel Capacity74.0 gal
Tire Size23.5R25 L3
Hydraulic System Fluid Capacity46.2 gal
Static Tipping Weight30,205 lb
Turning Radius253 in
Engine Oil Fluid Capacity6.9 gal
Front Axle/Diff Fluid Capacity11.1 gal
Rear Axle/Diff Fluid Capacity9.2 gal
Cooling System Fluid Capacity17.7 gal
Hydraulic Fluid Capacity27.7 gal

Engine

Engine specifications
Engine ModelD944 A7
Displacement486 in³
Power Measured @1,800 rpm
Gross Power225.0 hp
Net Power221.0 hp
Number of Cylinders4
AspirationWater-cooled in-line engine with charge-air cooling exhaust after-treatment through Liebherr-SCR technology
Torque Measured @1,100 rpm
Max Torque1,055 lb-ft
Bore5 in
Stroke6 in
Air cleanerDry type filter with main and safety element pre-cleaner service indicator on the Liebherr display
Fuel injectionElectronic Common Rail high-pressure injection

Hydraulic System

Hydraulic System specifications
Pump Flow Capacity62.0 gal/min
Raise Time5.5 s
Lower Time2.7 s
Dump Time2.3 s
Relief Valve Setting4,351 psi
Pump TypeLoad-sensing variable axial piston pump with output and flow control and pressure cut-off in the control block

Dimensions

Dimensions specifications
Ground Clearance20 in
Height - Top of Cab133 in
Wheelbase134 in
Reach at Max Lift and Dump37 in
Length with Bucket on Ground340 in
Hinge Pin - Max Height161 in

Bucket

Bucket specifications
Bucket Capacity - heaped4.30 yd³
Dump Clearance at Max Raise113 in
Breakout Force29,225 lb
Bucket Width97 in
Digging depth36 in
Arm length103 in

Electrical System

Electrical System specifications
Voltage24 V
Alternator—
Battery2 x 180 Ah
Starter24/10.5 (V/HP)
