LiebherrZettelmeyer
ZL5001
Wheel Loader
35 specifications
1 / 5

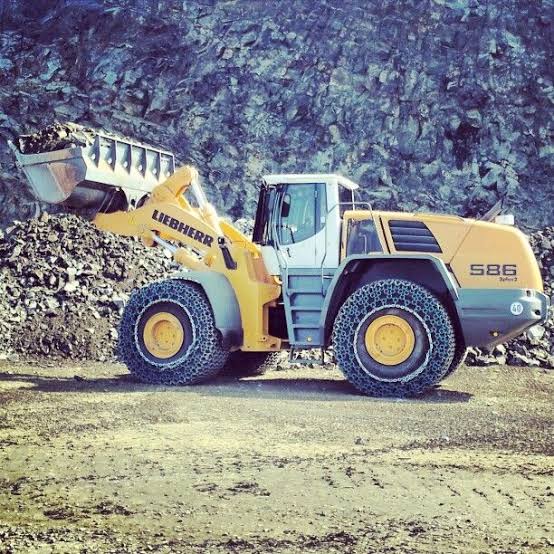

Image 1 of 5
Specifications
31 data points
Operating Specifications
| Operating Weight | 69,181 lb |
|---|---|
| Fuel Capacity | 132.1 gal |
| Tire Size | 29.5R25 |
| Hydraulic System Fluid Capacity | 92.5 gal |
| Static Tipping Weight | 99,318 lb |
| Operating Voltage | 24 V |
| Engine Oil Fluid Capacity | 11.4 gal |
| Rear Axle Oscillation | 26 ° |
| Alternator Supplied Amperage | 80 A |
| Front Axle/Diff Fluid Capacity | 23.8 gal |
| Rear Axle/Diff Fluid Capacity | 14.8 gal |
| Cooling System Fluid Capacity | 15.6 gal |
| Transmission Fluid Capacity | 3.1 gal |
Engine
| Engine Model | D 936 L A6 |
|---|---|
| Displacement | 642 in³ |
| Gross Power | 335.3 hp |
| Aspiration | turbo-charged |
Hydraulic System
| Pump Flow Capacity | 108.4 gal/min |
|---|---|
| Raise Time | 7.0 s |
| Lower Time | 5.5 s |
| Dump Time | 3.5 s |
| Pump Type | Load-sensing swash plate type variable flow pump with output and flow control and pressure cut-off in the control block |
Dimensions
| Ground Clearance | 23 in |
|---|---|
| Height - Top of Cab | 148 in |
| Wheelbase | 154 in |
| Length with Bucket on Ground | 391 in |
| Hinge Pin - Max Height | 183 in |
Transmission
| Max Speed - Forward | 21.8 mph |
|---|
Bucket
| Bucket Capacity - heaped | 7.19 yd³ |
|---|---|
| Dump Clearance at Max Raise | 131 in |
| Bucket Width | 134 in |
